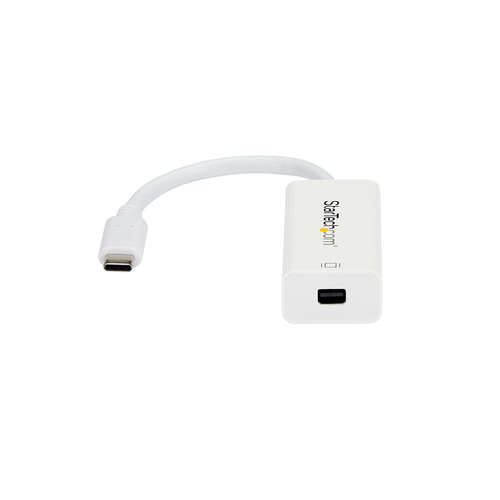

Name: StarTech.com USB-C to Mini DisplayPort Adapter - 4K 60Hz - White - USB 3.1 Type-C to Mini DP Adapter - Upgraded Version is CDP2MDPEC
Brand: StarTech.com
SKU: CDP2MDP
Price: 14.53 EUR
Availability: InStock

USB Type-C™ to Mini DP Adapter| Thunderbolt™ 3 Compatible | DP Alt Mode

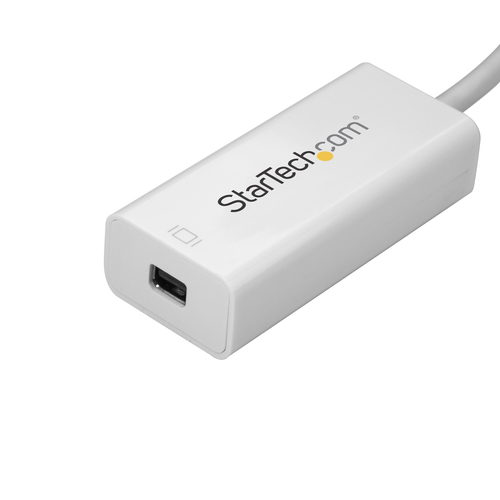

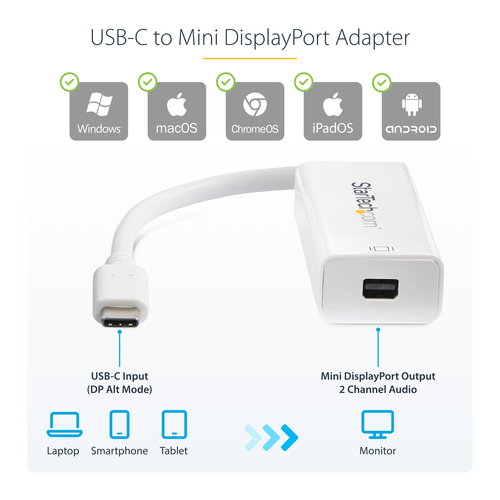

This USB Type-C to Mini DisplayPort adapter lets you output mini DisplayPort (mDP) video and audio from the USB Type-C port on your laptop or other device. It works with USB 3.1 or Thunderbolt 3 Type-C devices that pass an mDP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.

IT Pro Performance

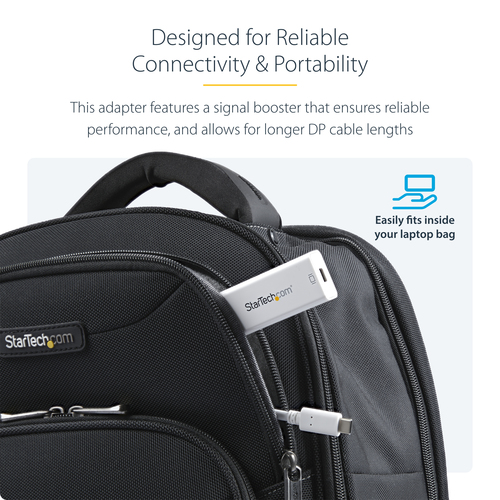

This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.

Enjoy High-Definition Resolution up to 4K at 60Hz

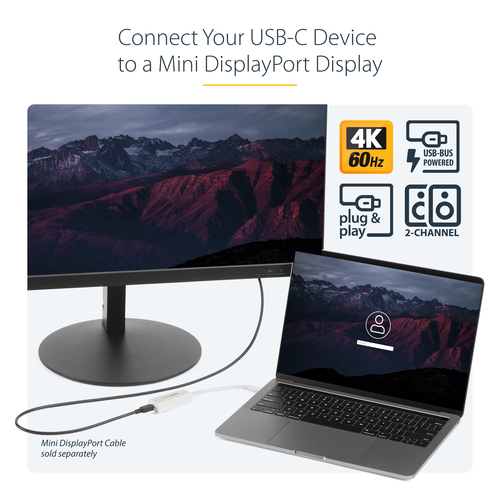

Harness the video capabilities that are built into your computer's USB-C connection, using the adapter to deliver the astonishing quality of UHD to your 4K 60Hz display.

You can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The USB-C video adapter is backward compatible with 1080p monitors or displays, which makes it a great accessory for workspace applications.

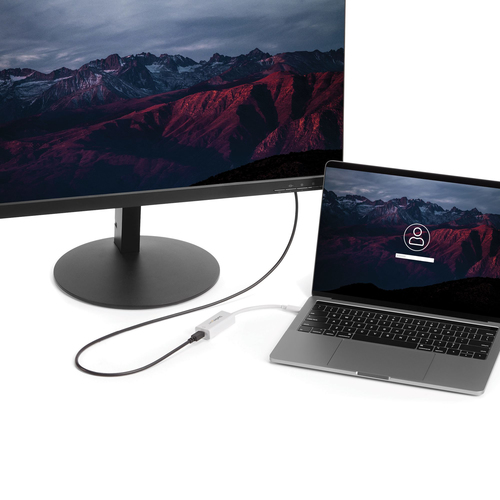

Hassle-Free Connection for Your USB Type-C Laptop

This adapter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, enabling you to plug it into your device in any direction. The Thunderbolt 3 compatible adapter provides a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

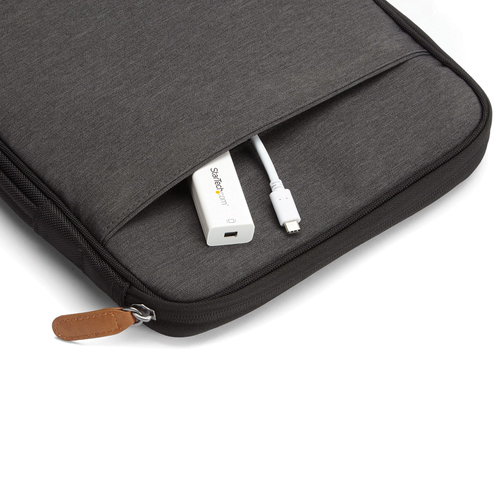

Lightweight Design for Easy Portability

The compact USB-C to mDP adapter is lightweight and fits perfectly in your laptop bag. Its portable design is ideal for BYOD (Bring Your Own Device) applications at the office or on the road.

The CDP2MDP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Notes:

•

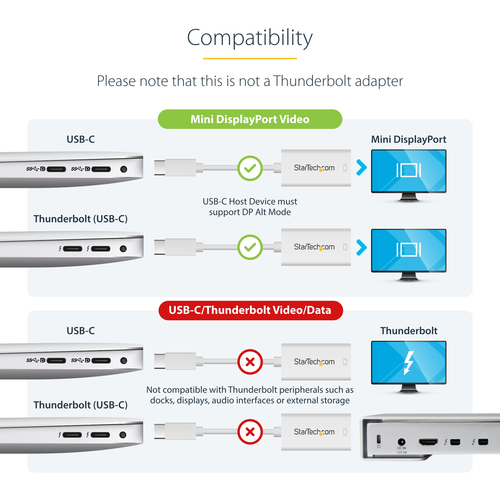

Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter

•

This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters

The StarTech.com Advantage

7 IN STOCK

RRP Price €14.53

Specifications

Performance

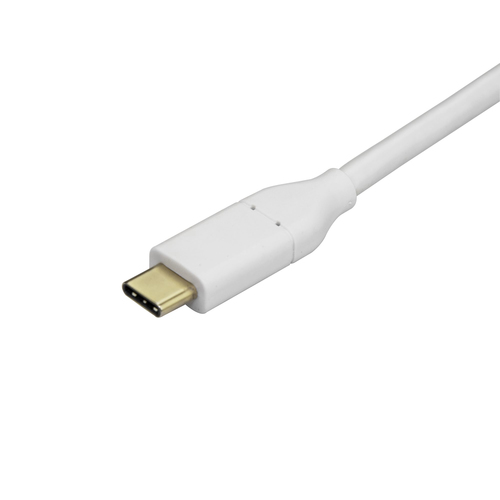

USB connector type

USB Type-C

USB connector gender

Male

USB connector form factor

Straight

DVI output

HDMI output

DisplayPort output

Yes

Number of displays supported

DisplayPort version

1.2

Maximum resolution

3840 x 2160 pixels

Refresh rate at maximum resolution

60 Hz

Supported graphics resolutions

1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160

Audio output channels

7.1 channels

Chipset

NXP - PTN5100, Pericom - PI3DPX1203

Certification

CE, FCC, REACH

Design

Product colour

White

Housing material

Plastic

Integrated USB cable

Yes

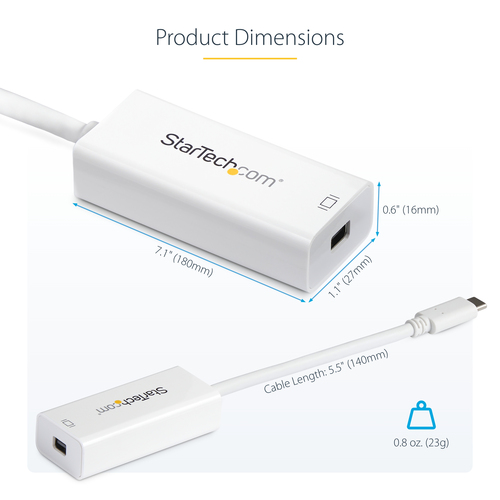

Weight & dimensions

Width

27 mm

Depth

60 mm

Height

16 mm

Weight

23 g

USB cable length

0.014 m

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

5 - 90%

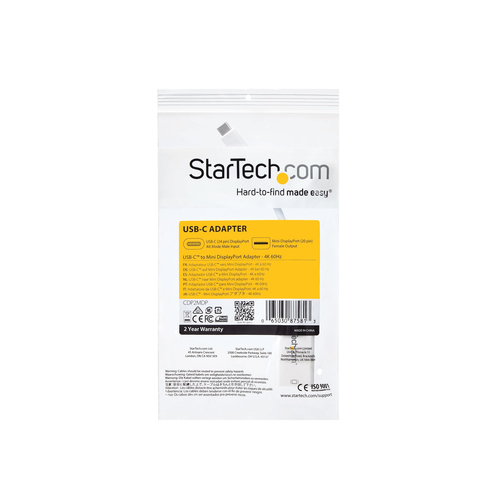

Packaging data

Package width

125 mm

Package depth

225 mm

Package weight

31 g

Packaging content

Batteries included

Yes

Technical details

Compliance certificates

RoHS

Logistics data

Products per master (outer) case

180 pc(s)

Master (outer) case width

320 mm

Master (outer) case length

500 mm

Master (outer) case height

210 mm

Harmonized System (HS) code

84733020

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.023 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
