CTPSFP1GELXS - Cables & Adaptors by StarTech.com

CTPSFP1GELXS - Cables & Adaptors by StarTech.com

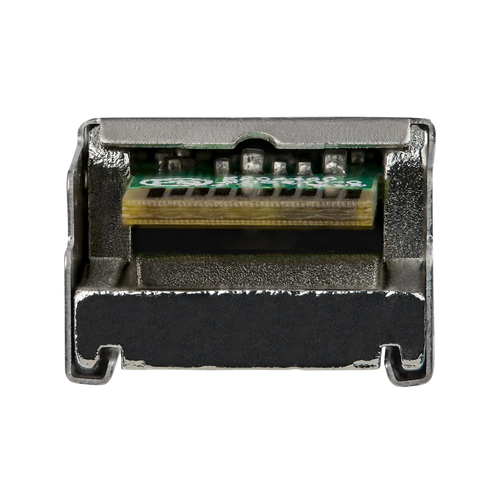

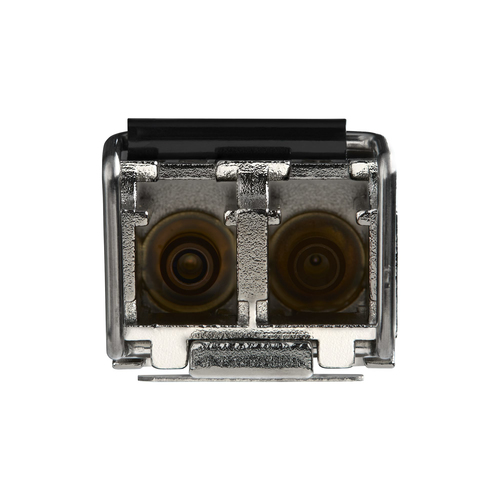

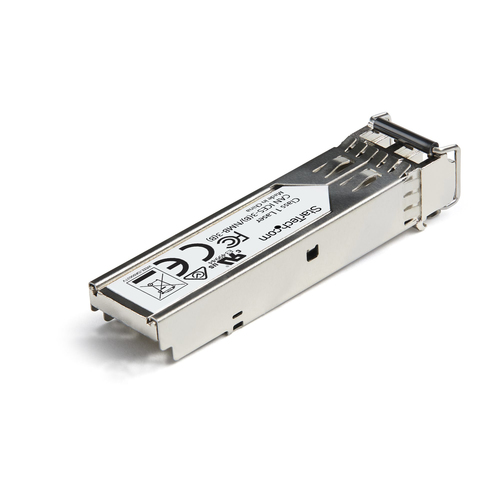

Name: StarTech.com Juniper CTP-SFP-1GE-LX Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC...
Brand: StarTech.com
SKU: CTPSFP1GELXS
Price: 41.27 EUR
Availability: OutOfStock

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The CTPSFP1GELXS is a Juniper CTP-SFP-1GE-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 53,972,659 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €41.27

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

10000 m

Wavelength

1310 nm

Fiber ethernet cabling technology

1000BASE

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

53972659 h

Brand compatibility

Juniper

Compatible products

CTP-SFP-1GE-LX

Power

Power consumption (typical)

1.3 W

Certificates

Compliance certificates

RoHS

Certification

REACH, CE, FCC, UR

Weight & dimensions

Width

14 mm

Depth

65 mm

Height

12 mm

Weight

72 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

207 mm

Package depth

230 mm

Package height

15 mm

Package weight

80 g

Logistics data

Master (outer) case width

344 mm

Master (outer) case length

295 mm

Harmonized System (HS) code

85369010

Master (outer) case height

255 mm

Products per master (outer) case

36 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.072 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
