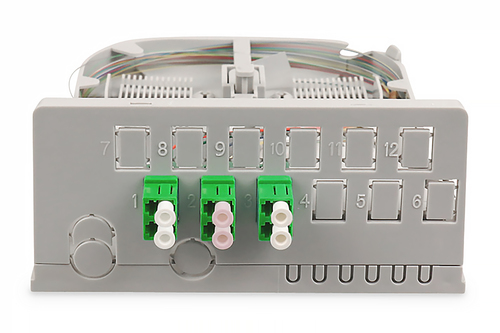

Digitus Ftth Home Distribution Unit, 3 x LC/APC duplex

It offers a wide range of functions which is needed in your Ftth broadband project in a compact and smart design.

- Extremely compact / variable transfer unit
- Multifunctional base plate
- Various cable entry options

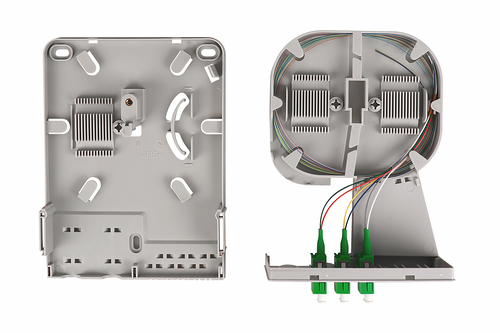

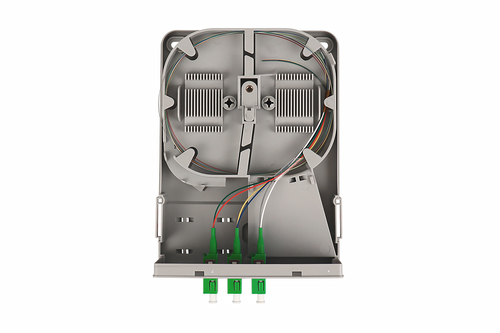

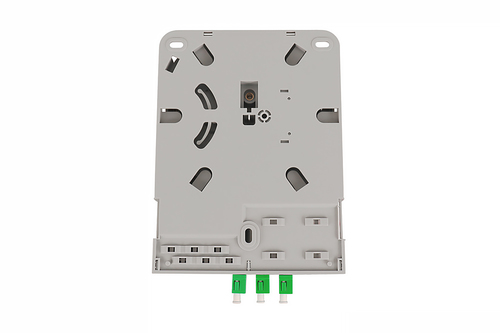

The distribution unit is assembled via a 3-part housing. The base plate is attached at the desired location and thus ensures free working in the distributor. Via the intelligent cable guide, the cable can be laid down and fixed without any difficulties. The base plate also has a PLC splitter holder and various cable entry options. Two cut-outs on the base plate allow the insertion of 7mm or 12mm microducts. The receptacle on the base plate provides space for a splice receptacle, which can be replaced by any splice or shrink receptacles. The space of the bottom plate as well as the crimp holder can be used for a through splice. The second attachment contains the versatile splice cassette, which can accommodate up to 12 couplings, providing space for 24 fibers. The twelve knockouts can be equipped with up to 12 LC duplex, 12 SC simplex or 12 E-2000® couplers. The two receptacles in the splice cassette are occupied by two crimp splice holders for twelve fibers each. These can be replaced with standard splice or shrink fixtures. Finally, the wall box is protected by a long lid, which prevents access by the subscriber. The lid can also be locked via the built-in cylinder lock. On the side there is a device for sealing the splice box.

ON ORDER

RRP Price €69.90

Specifications

Features

Product colour
Grey
Housing material
Plastic

Weight & dimensions

Width
122 mm
Depth
59 mm
Height
256 mm

Logistics data

Package volume
4620 cm³

Accessories
