PEXHDCAP4K - Cables & Adaptors by StarTech.com

PCI Express HDMI Recorder | HDR | 4K @ 60Hz | For Windows®

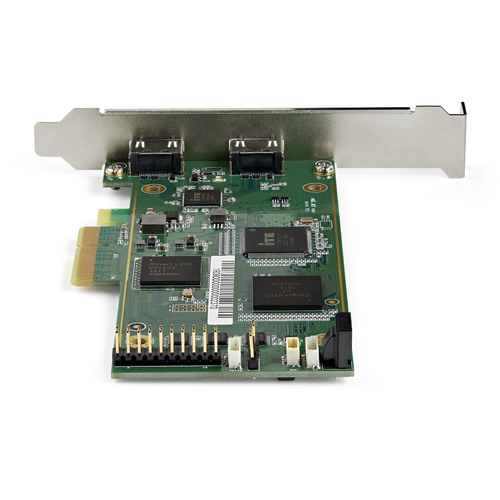

You can install the HDMI capture card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.

Astonishing Picture Quality at 60 Frames Per Second

With frame rates up to 60fps (frames per second) and H.264 encoding, this PCIe HDMI capture card is perfect for capturing ultra high-definition video for editing, compiling, and archiving. HDR10 is available through HDMI 2.0a support.

H.264 Encoding for Wide Device Compatibility

The software included with the 4K60 capture card encodes captured video in H.264 - the most widely adopted video compression standard in the world. This video recording card ensures your captures are compatible with most device platforms such as PC, Mac, iOS and Android™.

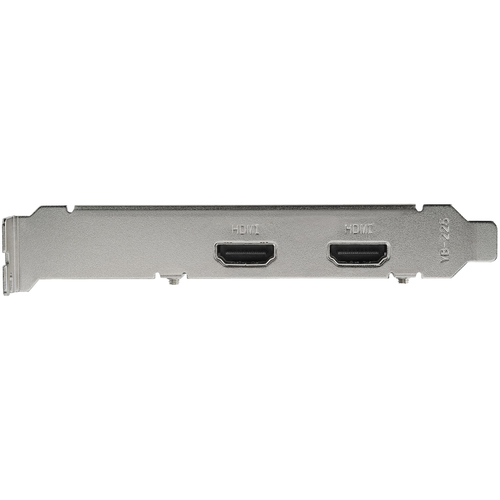

Pass-through Port

The UHD capture card features an HDMI output port so you can watch the video source on a separate HDMI display while recording on your computer.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

PEXHDCAP4K is backed by a StarTech.com 2-year warranty and free, lifetime technical support.

Note:

This capture device will not record digitally encrypted content

The StarTech.com Advantage

ON ORDER

RRP Price €414.93

Specifications

Performance

Internal
Yes
Host interface
PCIe
Video capture resolution (max)
4096 x 2160 pixels
Supported aspect ratios
4:3, 16:9
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)

Video

Analog signal format system
NTSC, PAL, PAL 60, PAL M
Maximum refresh rate
60 Hz
HDCP
Yes

File formats

Video compression formats
H.264, MPEG4

Ports & interfaces

HDMI ports quantity
2
HDMI version
2.0

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
20 - 80%

Technical details

Compliance certificates
CE, RoHS

Weight & dimensions

Width
69 mm
Depth
130 mm
Height
10 mm

Other features

Master (outer) case width
400 mm
Master (outer) case height
490 mm

Packaging data

Package weight
230 g
Package height
38 mm
Package width
144 mm
Package depth
207 mm

Packaging content

Low-profile bracket
Yes
Quick installation guide
Yes

Logistics data

Products per master (outer) case
35 pc(s)
Master (outer) case length
410 mm

Accessories

License
