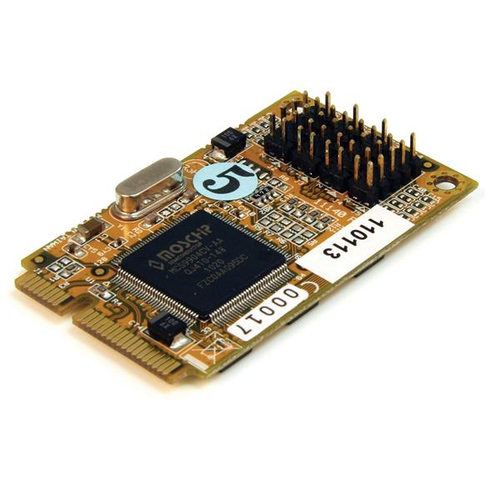

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART

Name: StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
Brand: StarTech.com
SKU: MPEX4S552
Price: 105.27 EUR
Availability: OutOfStock

Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot
The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- The smallest form factor available, for internally adding serial ports to any embedded system
- Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs

ON ORDER

RRP Price €105.27

Specifications

Ports & interfaces

Host interface

Mini PCI Express

Output interface

Serial

Serial ports quantity

Serial interface type

RS-232

Design

Internal

Yes

Product colour

Green

Features

Chipset

MosChip MCS9904CV-AA

FIFO (First In, First Out)

256 B

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

System requirements

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Weight & dimensions

Width

10 mm

Depth

51 mm

Height

30 mm

Weight

150 g

Packaging data

User guide

Yes

Package width

145 mm

Package depth

212 mm

Package height

40 mm

Package weight

200 g

Logistics data

Harmonized System (HS) code

84733020

Other features

Data transfer rate

0.921 Mbit/s

Compatible operating systems

Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 6.0 Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.6.x

Compliance industry standards

PCI Express 1.1

Quantity outer carton

50 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.15 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com MSA Uncoded SFP+ Transceiver Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors

10 Gbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime WarrantyThe SFP-10GB-BX-U-20-ST is a MSA Compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP-10GB-BX-D-20-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1270nmTx/1330nmRx• Maximum Data Transfer Rate: 10Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 20 km (12.4 mi)• Power Consumption: Low power consumption• DDM: YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€385.73

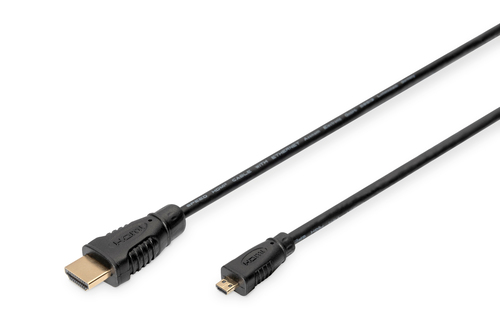

Digitus HDMI High Speed with Ethernet Connection Cable Cables & Adaptors

Supports Full HD and 3D and provides Ethernet connectivity.This Full HD and 3D supporting cable is used for the connection of audio/video devices with a HDMI type D interface, which often is used by mobile devices such as Smart Phones of newest generation. Also capable for use of any IP-based application.

€4.39

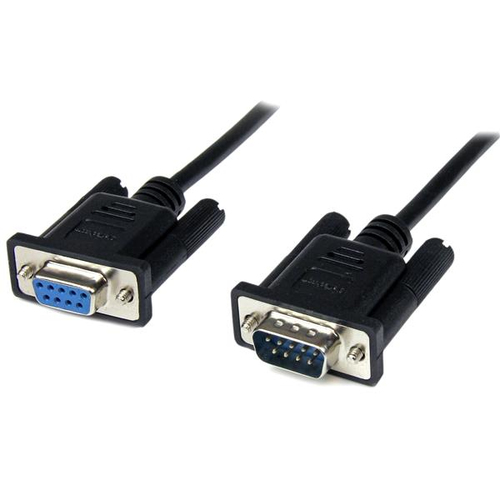

StarTech.com 2m Black DB9 RS232 Serial Null Modem Cable F/M Cables & Adaptors
