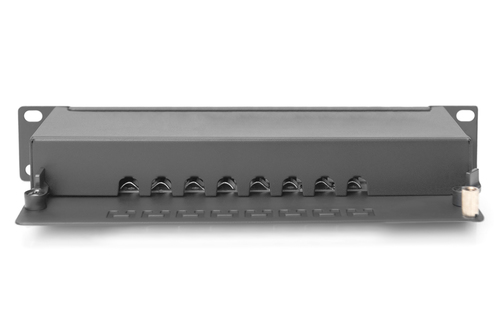

Digitus CAT 6A, class E patch panel, shielded, black

Future-oriented standards and high-end quality for your network

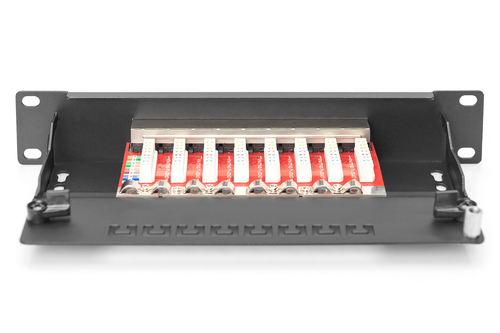

- Simple cable installation possible thanks to color-coded LSA strips
- Shielding ensures optimized measured power values

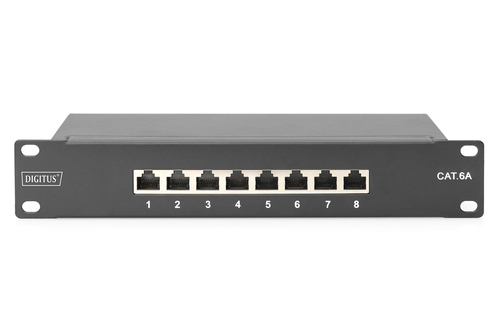

- Compact 10" design with 8x RJ45 sockets
- PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+
- Wall mounting possible

The CAT 6A patch panels for 254 mm (10") rack mounting from DIGITUS® are manufactured according to Link Performance Class E, for up to 500 MHz, ISO/IEC 11801 and EN 50173. Cables are installed via the LSA strips, which are color-coded according to EIA/TIA 568B. The housing is made of galvanized cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110. It complies with the 802.3at PoE+ and the 802.3af PoE standard.

ON ORDER

RRP Price €27.24

Specifications

Network

Cabling technology
10GBase-T
Ethernet interface type
10 Gigabit Ethernet
Maximum data transfer rate
10000 Mbit/s
Ports quantity
8
Connector(s)
RJ-45
Cable types supported
Cat6a
AWG wire size
22/26

Design

Product colour
Black
Mounting
Rack mounting
Rack capacity
1U

Certificates

Certification
UL

Operational conditions

Operating temperature (T-T)
-20 - 70 °C

Weight & dimensions

Weight
820 g

Packaging data

Package width
60 mm
Package depth
260 mm
Package height
120 mm
Package weight
890 g
Package volume
1872 cm³
Package type
Box

Logistics data

UK Trade Tariff code
85369010
Country of origin
China
Harmonized System (HS) code
85371098

Accessories
