IES51000 - Cables & Adaptors by StarTech.com

Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.

Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.

Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Seamless performance even in harsh industrial conditions, with an extended temperature range and an IP30-rated enclosure
- Maintain device operation during power disruptions, with redundant power inputs

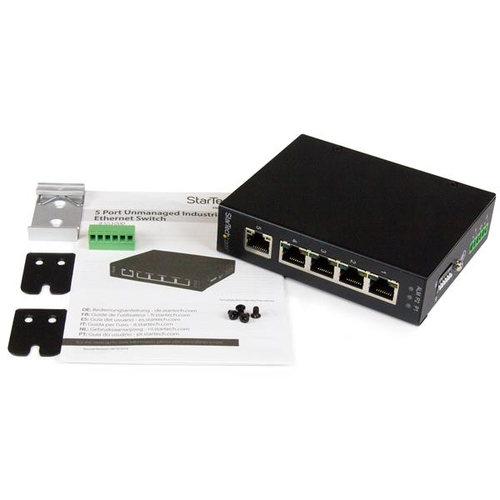

- Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets

7 IN STOCK

RRP Price €249.62

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack

Network

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u
10G support
No
Full duplex
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes

Data transmission

Switching capacity
2 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes

Design

Product colour
Black
Housing material
Steel
LED indicators
Activity, Link, Power
International Protection (IP) code
IP30
Wall mountable
Yes

Performance

Maximum cable length
100 m
Buffer size
128 KB

Power

Input voltage
12 - 58 V
Power consumption (typical)
3.63 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
89 mm
Depth
111 mm
Height
28 mm
Weight
328 g

Packaging content

Manual
Yes

Packaging data

Wall mounting kit
Yes
Terminal block included
Yes
Mounting brackets included
Yes
Screws included
Yes
DIN rail included
Yes
Package width
139 mm
Package depth
176 mm
Package height
83 mm
Package weight
523 g

Certificates

Certification
CE, FCC, RoHS, REACH

Logistics data

Harmonized System (HS) code
85176990
