JD093A-ST - Cables & Adaptors by StarTech.com

JD093A-ST - Cables & Adaptors by StarTech.com

Name: StarTech.com HPE JD093A Compatible SFP+ Module - 10GBASE-LRM - 10GbE Multi Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 200m - 1310n...
Brand: StarTech.com
SKU: JD093A-ST
Price: 248.68 EUR
Availability: OutOfStock

10 Gbps | Multi Mode Fiber | LC | 200 m (656 ft) | Lifetime Warranty

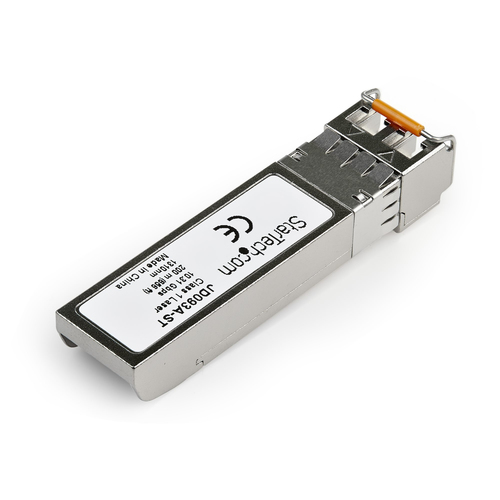

The JD093A-ST is a HPE JD093B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 200 m (656 ft)
• MTBF: 145,858,878 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €248.68

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

SFP transceiver standard

LRM

Maximum transfer distance

200 m

Wavelength

1310 nm

Fiber ethernet cabling technology

10GBASE

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

145858878 h

Brand compatibility

Compatible products

JD093A

Power

Power consumption (typical)

1 W

Weight & dimensions

Width

58.4 mm

Depth

13.9 mm

Height

13.7 mm

Weight

21 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

115 mm

Package height

31 mm

Package weight

50 g

Logistics data

Master (outer) case width

90 mm

Master (outer) case length

115 mm

Harmonized System (HS) code

85369010

Master (outer) case height

250 mm

Products per master (outer) case

30 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.021 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
