Cisco Meraki MA-ANT-27 network antenna Sector antenna N-type 12 dBi

Name: Cisco Meraki MA-ANT-27 network antenna Sector antenna N-type 12 dBi
Brand: Cisco
SKU: MA-ANT-27
Price: 597.05 EUR
Availability: OutOfStock

The Cisco Meraki ANT-27 sector antenna is a 9 / 12 dBi, MIMO, dual–band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.

ON ORDER

SKU: MA-ANT-27

Manufacturer:

Cisco

RRP Price €597.05

Specifications

Performance

Frequency band

2.400 – 2.500, 5.150 – 5.875

Gain

9 / 12 dBi

Antenna gain (2.4 GHz)

9 dBi

Antenna gain (5 GHz)

12 dBi

Horizontal beam width

65°

Vertical beam width

18°

Antenna gain level (max)

12 dBi

Features

Antenna type

Sector antenna

Antenna connector type

N-type

Product colour

White

Housing material

Plastic

Ultraviolet (UV) resistant

Yes

Mounting

Wall/Pole

Purpose

Indoor & outdoor

Operational conditions

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

140 mm

Depth

48 mm

Height

230 mm

Weight

630 g

Packaging data

Package type

Box

Packaging content

Quantity per pack

1 pc(s)

Mounting kit

Yes

Logistics data

Harmonized System (HS) code

85177100

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.63 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

POYNTING - PUCK-SERIES MOUNTING KIT WHITE PLASTIC SPARE PARTS Antennas

POYNTING - PUCK-SERIES MOUNTING KIT WHITE PLASTIC SPARE PARTS

€14.49

Poynting A-DASH-0003-V1 network antenna Omni-directional antenna SMA 1.2 dBi Antennas

The DASH-3 is purposefully designed for low-profile applications, making it ideal for smart meters and IoT deployments. Its omni-directional radiation pattern ensures reliable connectivity for both indoor and outdoor installations, typically mounted on the top or side of smart meter boxes.Wideband Frequency Coverage: 400–510 MHz, supporting IoT and LTE/CDMA applications.Omni-Directional Radiation Pattern: Ensures 360° signal coverage for consistent performance.Compact & Low-Profile Design: Seamlessly integrates into smart meter enclosures for easy deployment.Superior Electrical Performance: Optimised for the 433–510 MHz international IoT and LTE/CDMA bands.The DASH-3 is the perfect solution for smart metering and IoT applications, delivering reliable connectivity with a simple, durable design.Ideal Applications- Smart Utilities: Smart Power Metering, Gas & Water Metering- Smart Buildings: Climate Control, Access Control, Security, Irrigation- Digital Signage- Smart Environmental & Water Systems- Industrial Factory Automation and M2M systems- Warehouses & Logistics Systems- Farming & Agricultural M2M & IoT

€19.20

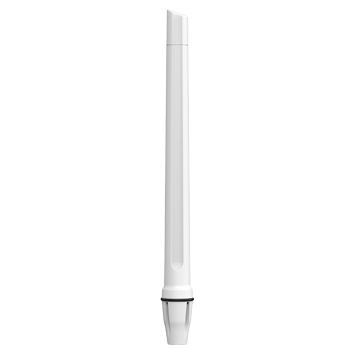

Poynting OMNI-402 network antenna Antennas

The OMNI-402 is an ultra-wide band antenna, which covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies, while providing 2×2 MIMO capability from its vertically separated radiating elements, all in the same radome. The antenna design allows Poynting to have superior pattern control over the entire frequency range making the OMNI-402 a true high performance omni-directional MIMO antenna, suitable for marine and coastal applications. Usable in all parts of the world, the OMNI-402 guarantees signal reception almost everywhere. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz LTE frequency getting more and more popular in various regions and countries! download pdf

€352.88

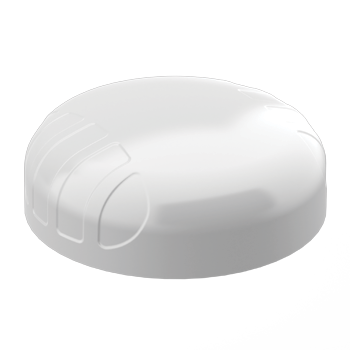

Poynting A-PUCK-0005-V1-01-W network antenna Omni-directional antenna 7.5 dBi Antennas

Poynting’s new PUCK antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-5 consists of a 5-in-1 antenna system within a single housing, featuring 2X2 MIMO LTE, 2X2 MIMO Wi-Fi (Dual-band 2.4 GHz & 5 GHz) and GPS/GLONASS. The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 698 MHz to 3800 MHz band, this includes the most popular international LTE bands. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2×2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.

€94.41

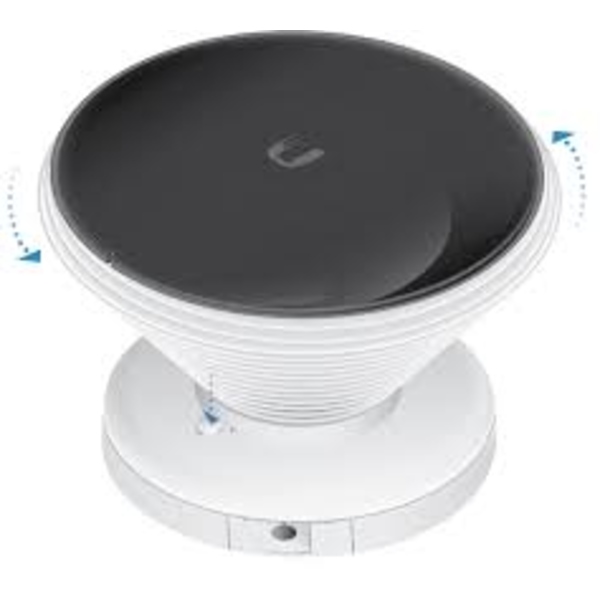

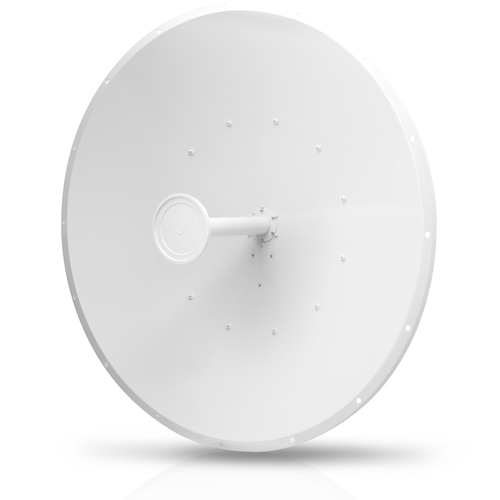

Ubiquiti AF-5G34-S45 network antenna 34 dBi Antennas

Compact Footprint for Deployment FlexibilityThe compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.Plug and Play IntegrationThe airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.Advanced RF Isolation DesignThe innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.airFiber X Conversion KitThe 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model AF-5G-OMT-S45, convertsthe RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.

€315.35

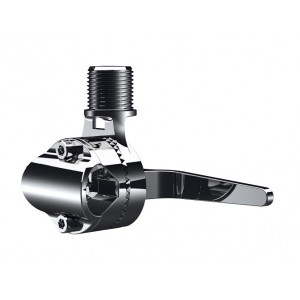

POYNTING - HEAVY DUTY RAIL MOUNTED MARINE BRACKET Antennas
