N390-02M-12-AP - Cables & Adaptors by Eaton

N390-02M-12-AP - Cables & Adaptors by Eaton

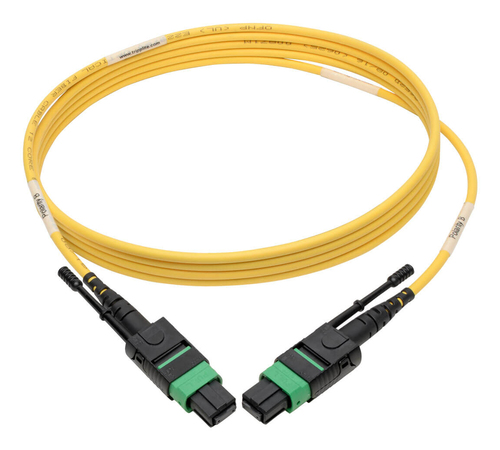

Name: Tripp Lite N390-02M-12-AP MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow, 2 m (6....
Brand: Eaton
SKU: N390-02M-12-AP
Price: 227.63 EUR
Availability: OutOfStock

9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications

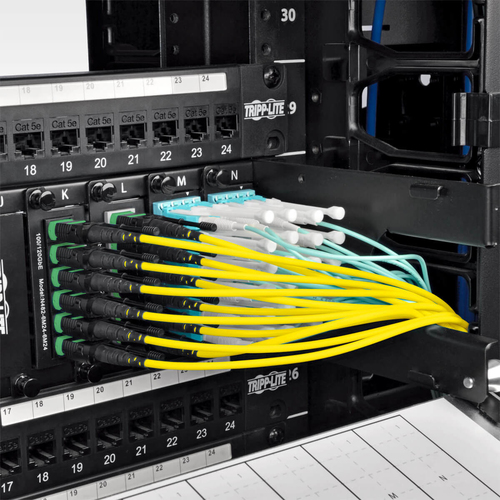

Designed for enterprise applications in wiring closets, telecom rooms and data centers
Recommended for QSFP+ applications in enterprise installations
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

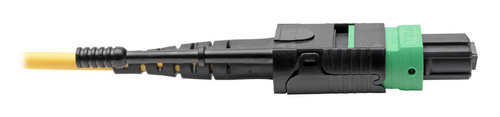

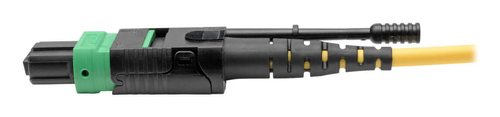

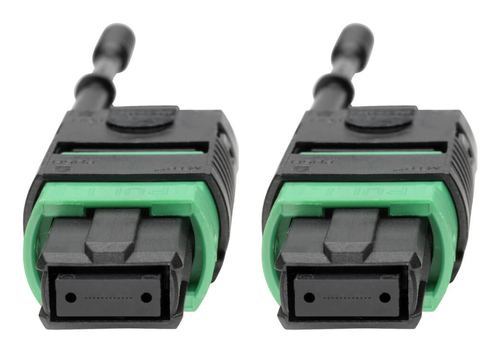

MTP/MPO APC Connectors with Push/Pull Tabs
12-fiber female connectors 12 times denser than SC connectors
APC connector angled to prevent light from reflecting back into laser
Push/pull tabs easy to install and remove with one hand
100% tested for low insertion loss and back reflection

ON ORDER

RRP Price €227.63

Specifications

Features

Cable length

2 m

Connector 1

MTP

Connector 2

MTP

Connector 1 gender

Female

Connector 2 gender

Female

Cable type

OFNP

Product colour

Yellow

Core diameter

8.3 µm

Cladding diameter

125 µm

Fiber mode structure

Single-mode

Data transfer rate

100 Gbit/s

Certificates

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-20 - 60 °C

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

30 g

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332205350

Country of origin

China

Master (outer) case width

185.4 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

149.9 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

360 g

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.03 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
