N48M-64M8L4-03 - Cables & Adaptors by Eaton

N48M-64M8L4-03 - Cables & Adaptors by Eaton

Name: Tripp Lite Preloaded Fiber Patch Panel, 3U - 64x (12F MTP/MPO-PC to 4x LC Duplex F/F) 8F Trunk Cables, OM4 Multimode, 3 m (9.8 ft.)
Brand: Eaton
SKU: N48M-64M8L4-03
Price: 10778.31 EUR
Availability: OutOfStock

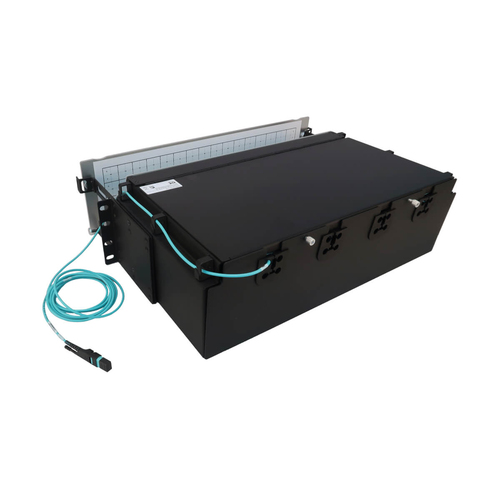

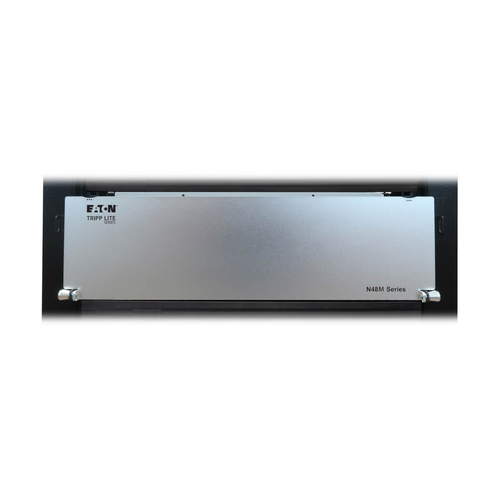

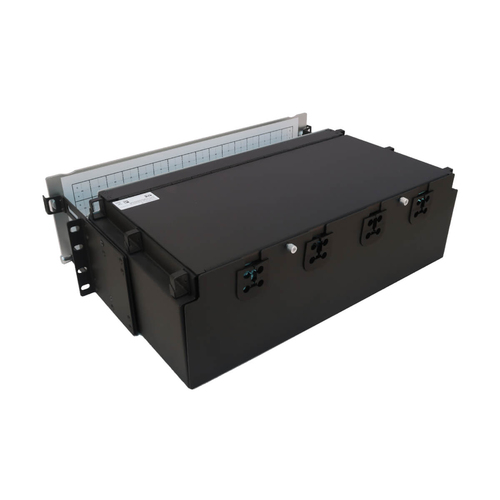

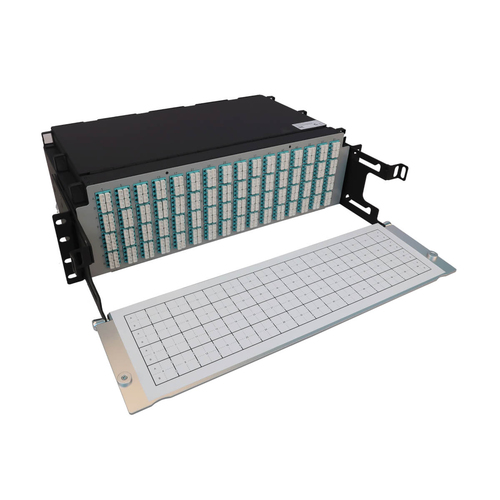

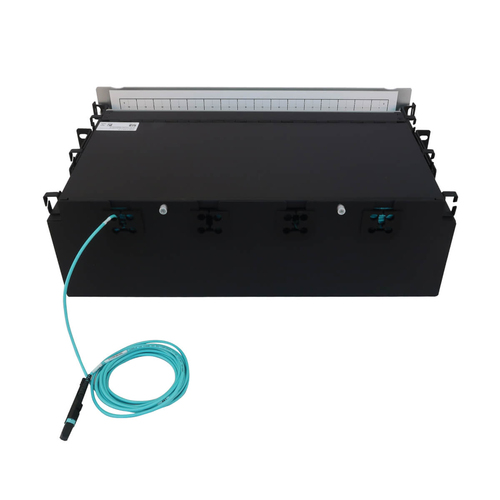

3U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time

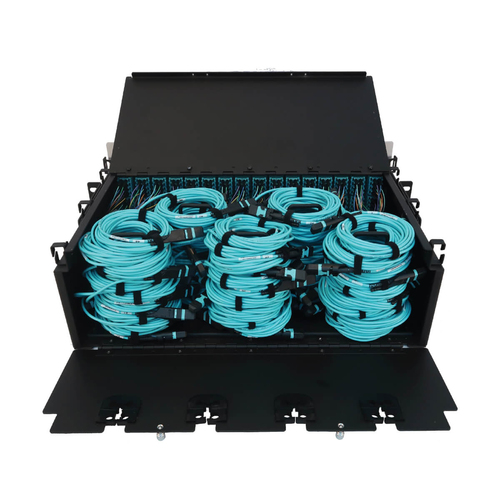

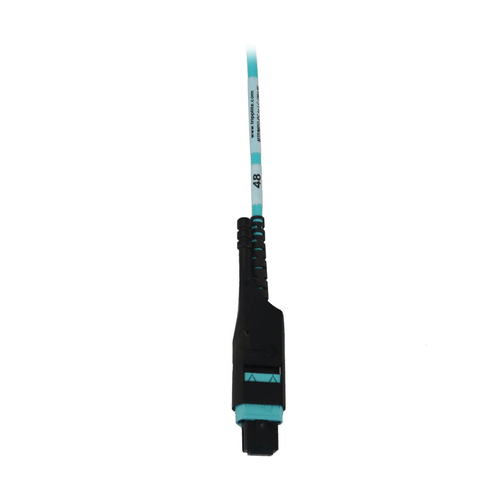

All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 3U chassis features 64 MTP/MPO-PC to LC Duplex 8-fiber multimode trunk cables, all three meters (9.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved.

Integrates Equipment to Meet Current Connectivity Needs

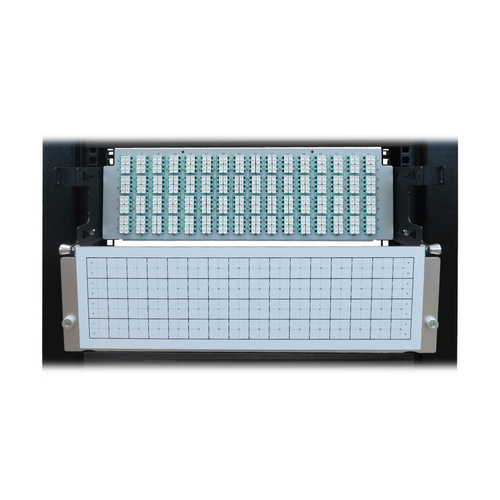

This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple, elegant and flexible manner. The N48M-64M8L4-03 mounts in just 3U of space in an EIA-standard 19-inch rack.

ON ORDER

RRP Price €10,778.31

Specifications

Network

Ethernet interface type

10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet

Duplex

Yes

Ports quantity

256

Connector(s)

MTP/MPO - LC

Cable types supported

Fiber

Multi-mode fiber (MMF) supported

Yes

Design

Product colour

Black, Silver

Mounting

Rack mounting

Rack capacity

Cable length

2.99 m

Cable colour

Aqua

Certificates

Compliance certificates

RoHS, REACH

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

5 - 85%

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

5 - 85%

Sustainability

Sustainability compliance

Yes

Packaging data

Package width

579.1 mm

Package depth

480.1 mm

Package height

226.1 mm

Package weight

8.6 kg

Logistics data

Country of origin

China

Master (outer) case width

599.4 mm

Master (outer) case length

500.4 mm

Master (outer) case height

480.1 mm

Master (outer) case gross weight

18.2 kg

Products per master (outer) case

2 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332262230

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

8.6 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
