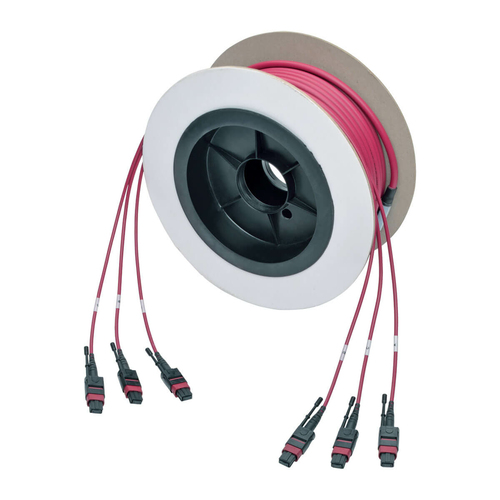

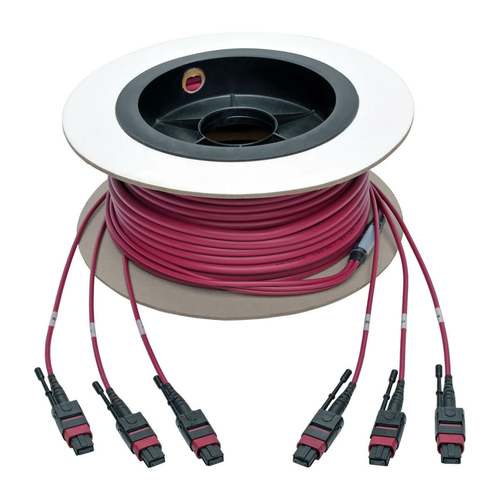

N858-15M-3X8-MG - Cables & Adaptors by Eaton

OM4-Rated for 40/100 Gb Ethernet Applications

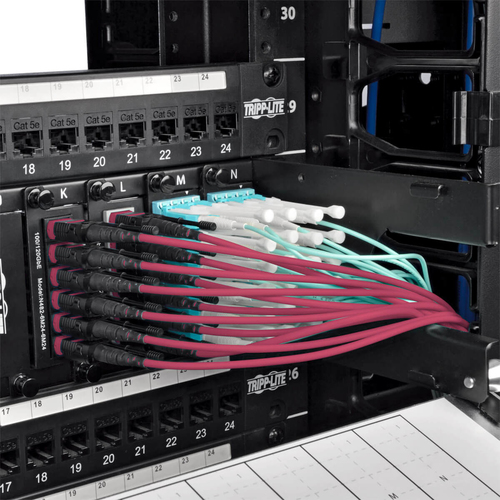

Designed to extend high-density connections between network equipment in telecom rooms and data centers
Recommended for patching between data center MDFs and IDFs
Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
Magenta-colored for identification as an OM4 cable

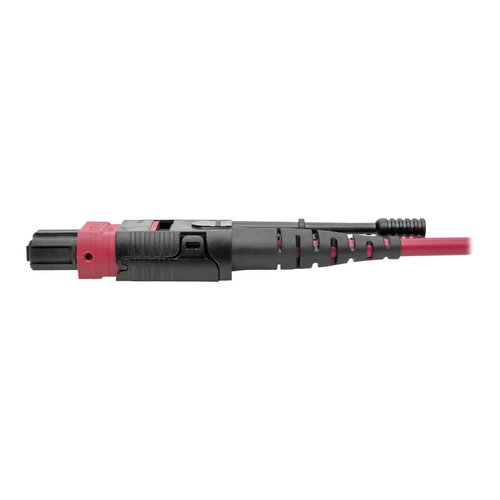

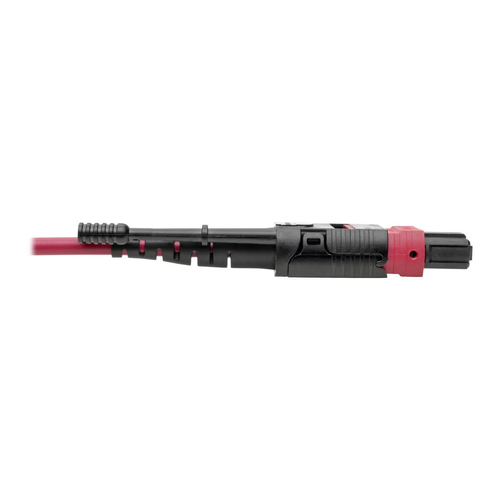

MTP/MPO Connectors with Push/Pull Tabs
8-fiber female connectors 12 times denser than SC connectors
Push/pull tab connectors easy to install and remove with one hand
100% tested for low insertion loss and back reflection

Error-Free Signal Transfer
50/125 duplex glass fiber construction
Plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts

ON ORDER

RRP Price €838.79

Specifications

Features

Cable length
15 m
Fibre optic type
OM4
Connector 1
MTP
Connector 2
MTP
Connector 1 gender
Female
Connector 2 gender
Female
Product colour
Black, Magenta
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Data transfer rate
100 Gbit/s

Certificates

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C

Weight & dimensions

Bending radius
5.6 mm

Packaging data

Package width
210.1 mm
Package depth
210.1 mm
Package height
95 mm
Package weight
830 g

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332200188
Country of origin
China
Master (outer) case width
391.2 mm
Harmonized System (HS) code
8544.70.0000
Master (outer) case length
325.1 mm
Master (outer) case height
325.1 mm
Master (outer) case gross weight
5.78 kg
Products per master (outer) case
6 pc(s)
