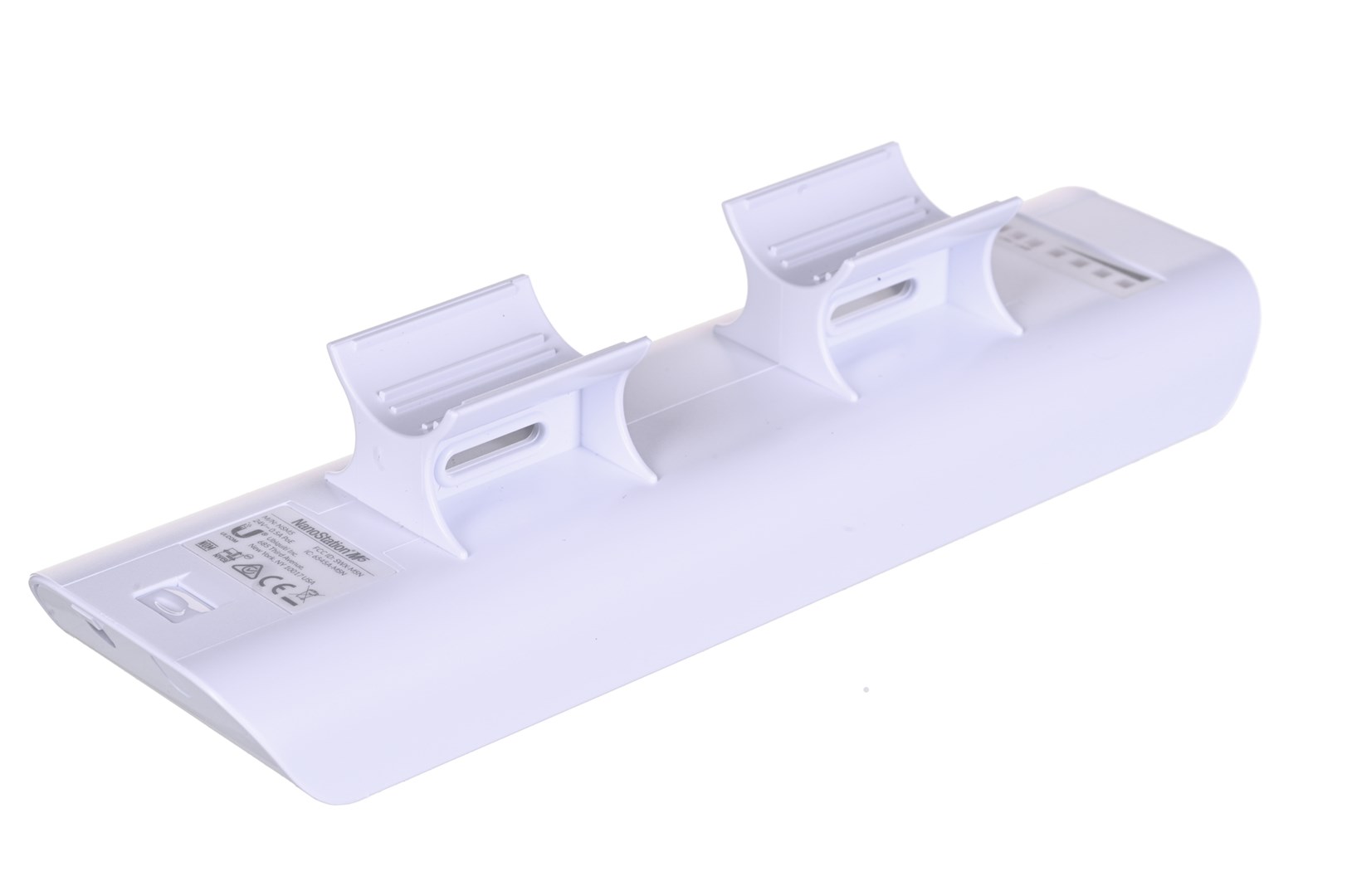

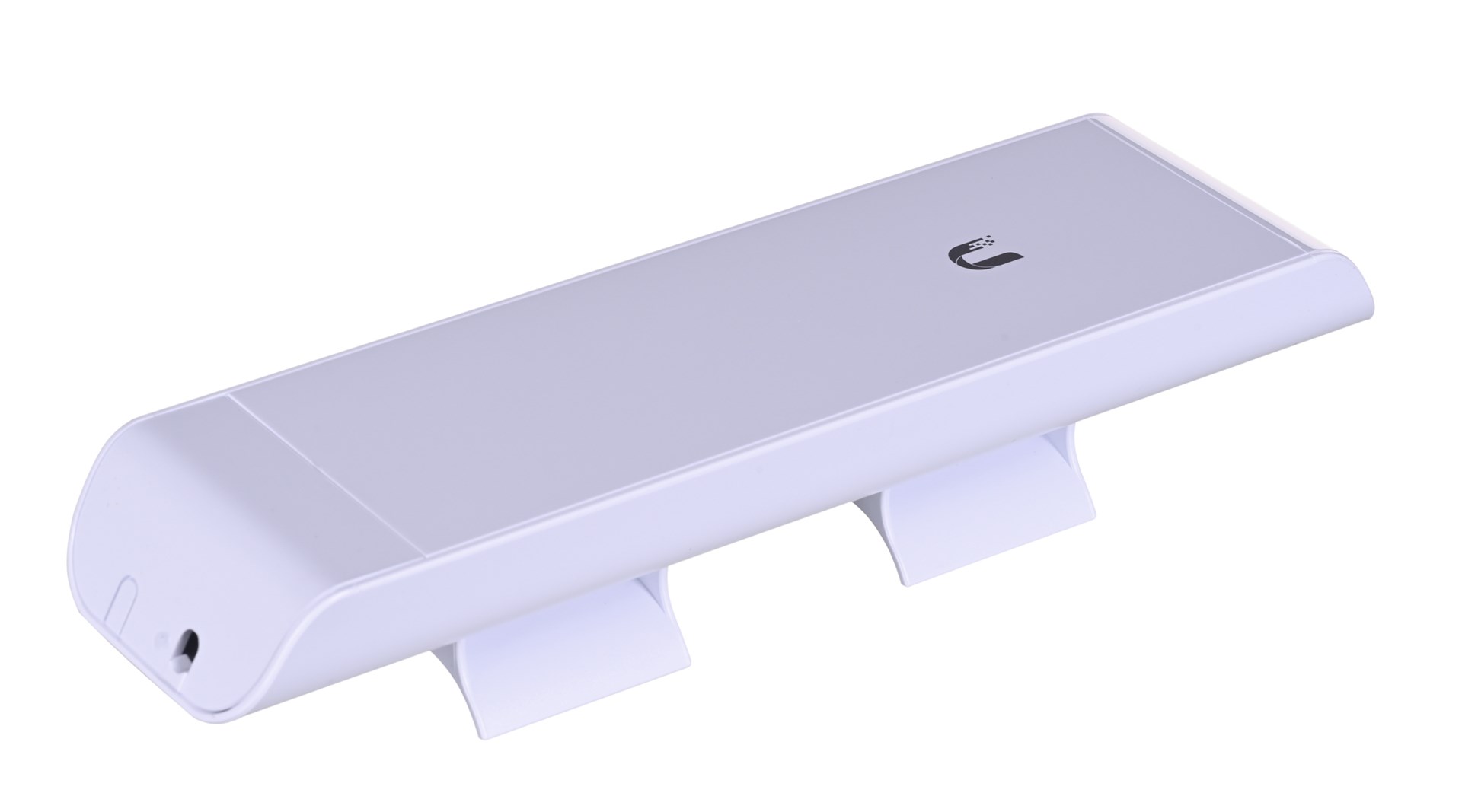

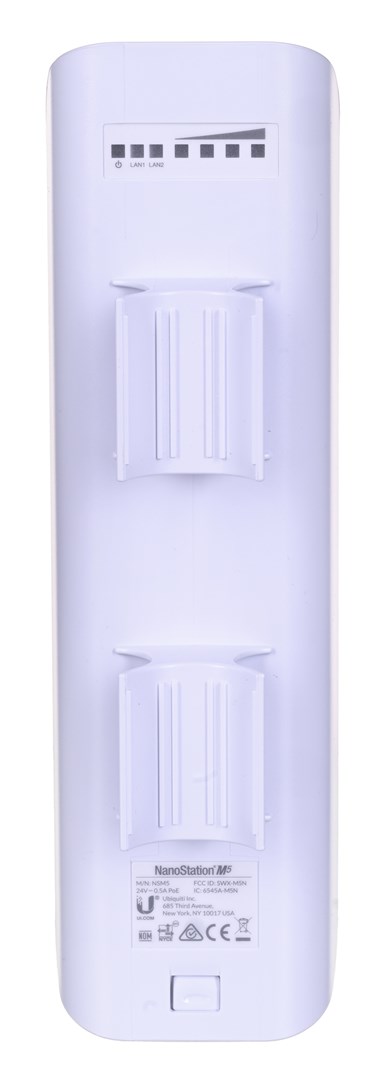

Ubiquiti NanoStation M5 150 Mbit/s White Power over Ethernet (PoE)

55 IN STOCK
SKU: NSM5
Manufacturer:
Ubiquiti Ubiquiti

RRP Price €89.44

Specifications

Features

5 GHz
Yes
Maximum data transfer rate
150 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
Frequency band
4.9 - 5.9 GHz
Networking standards
IEEE 802.3u

Ports & interfaces

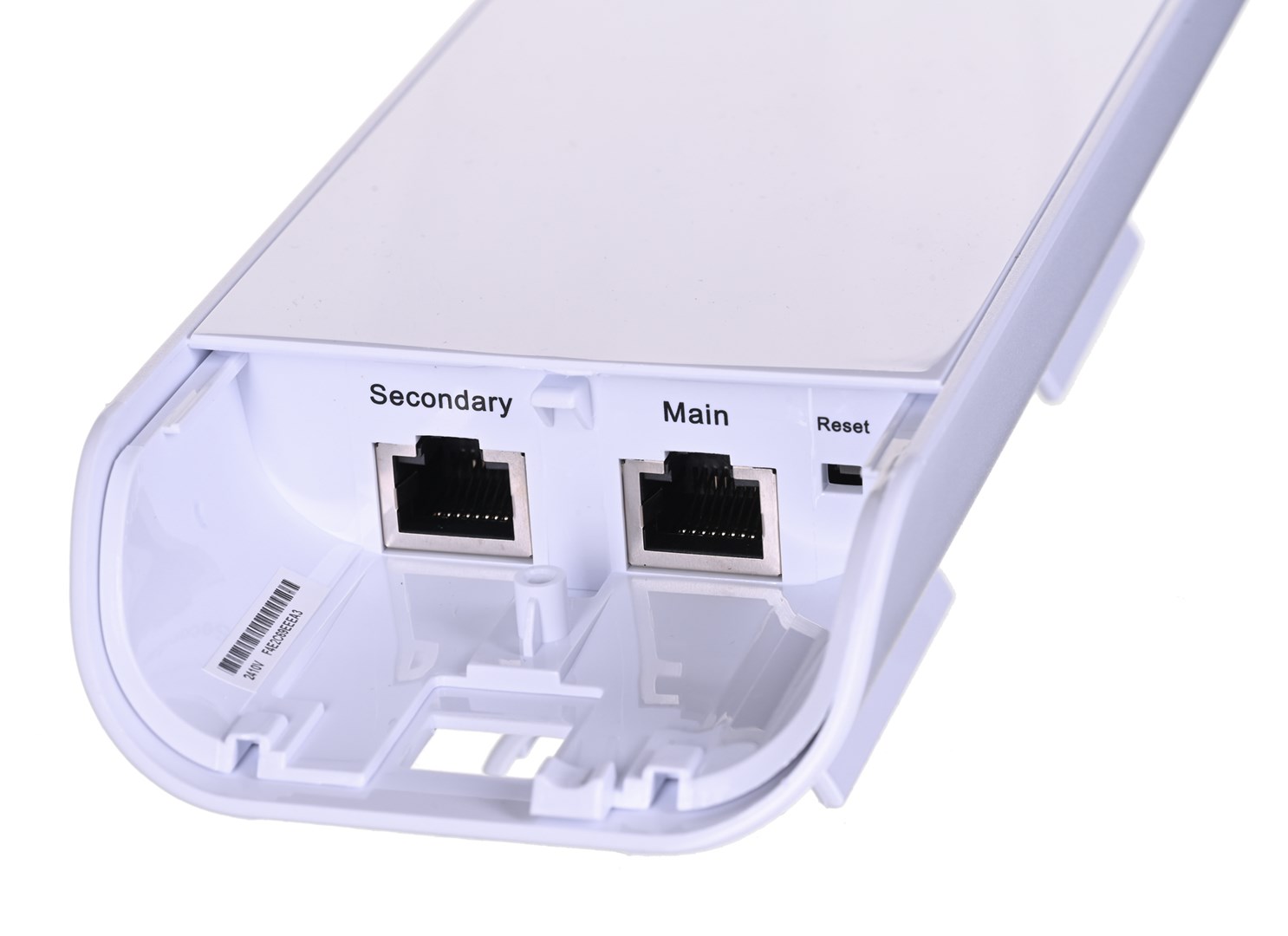

Ethernet LAN (RJ-45) ports
2

Power

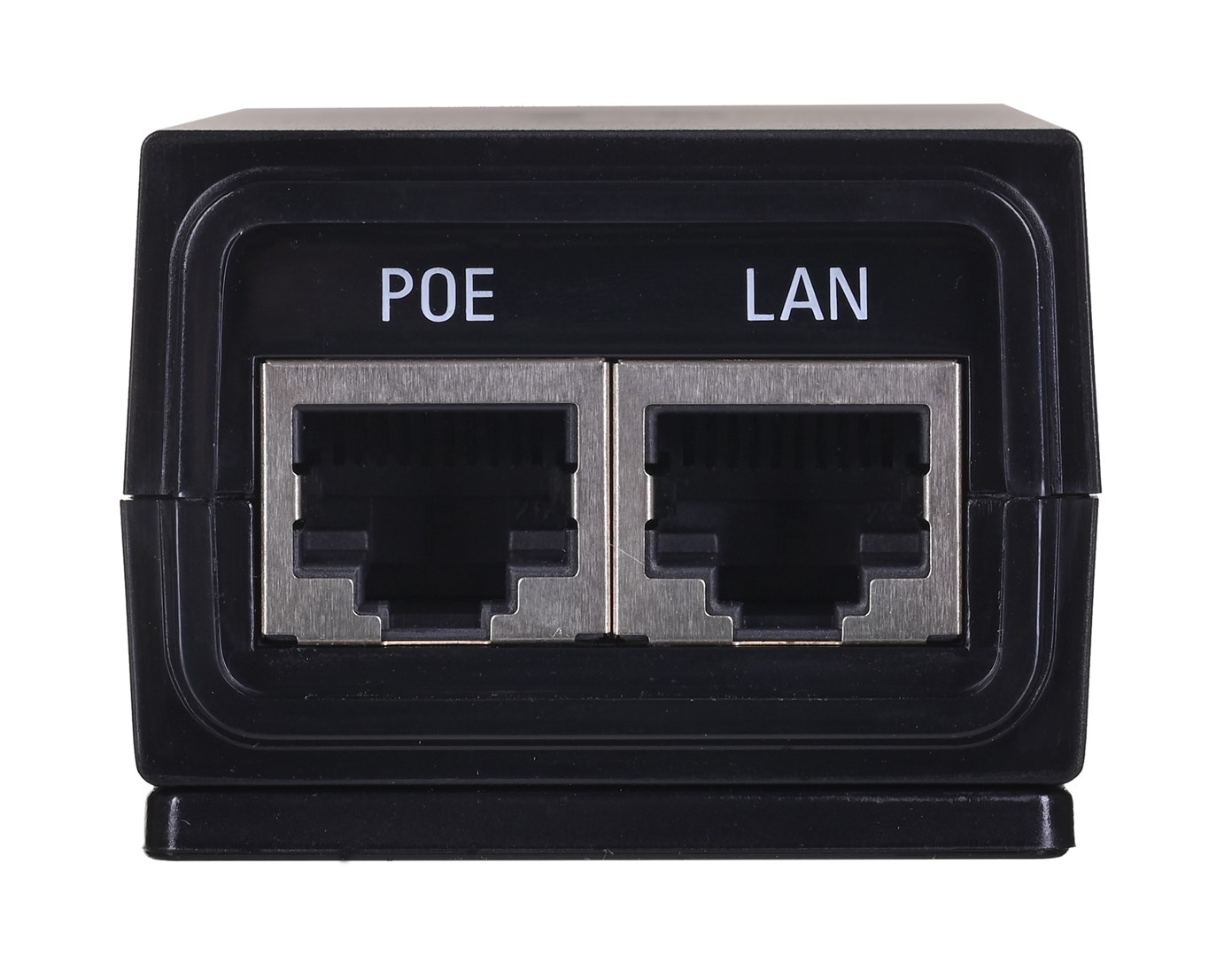

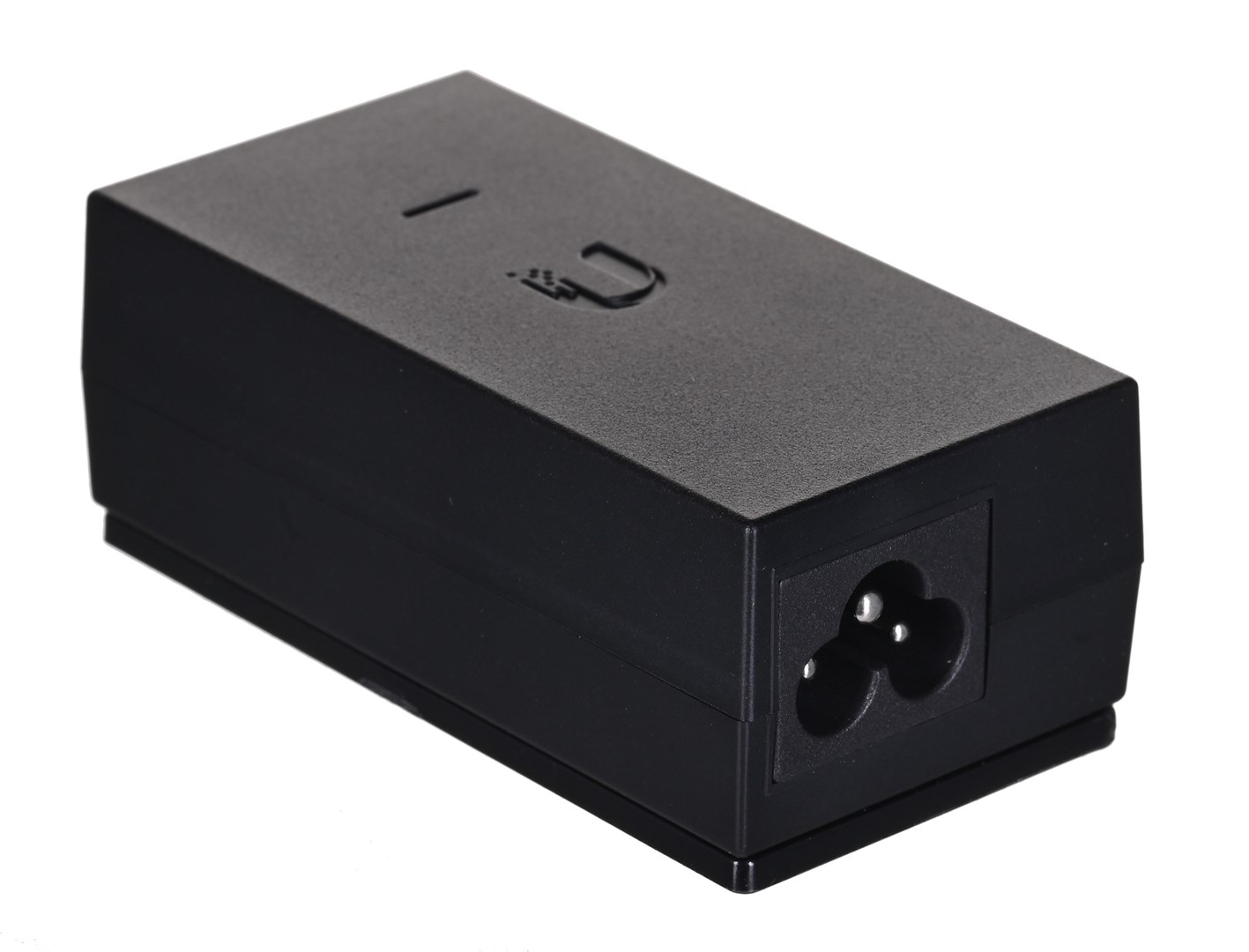

Power over Ethernet (PoE)
Yes
AC input voltage
24 V
Input current
0.5 A
Power consumption (typical)
8 W

Design

Product colour
White

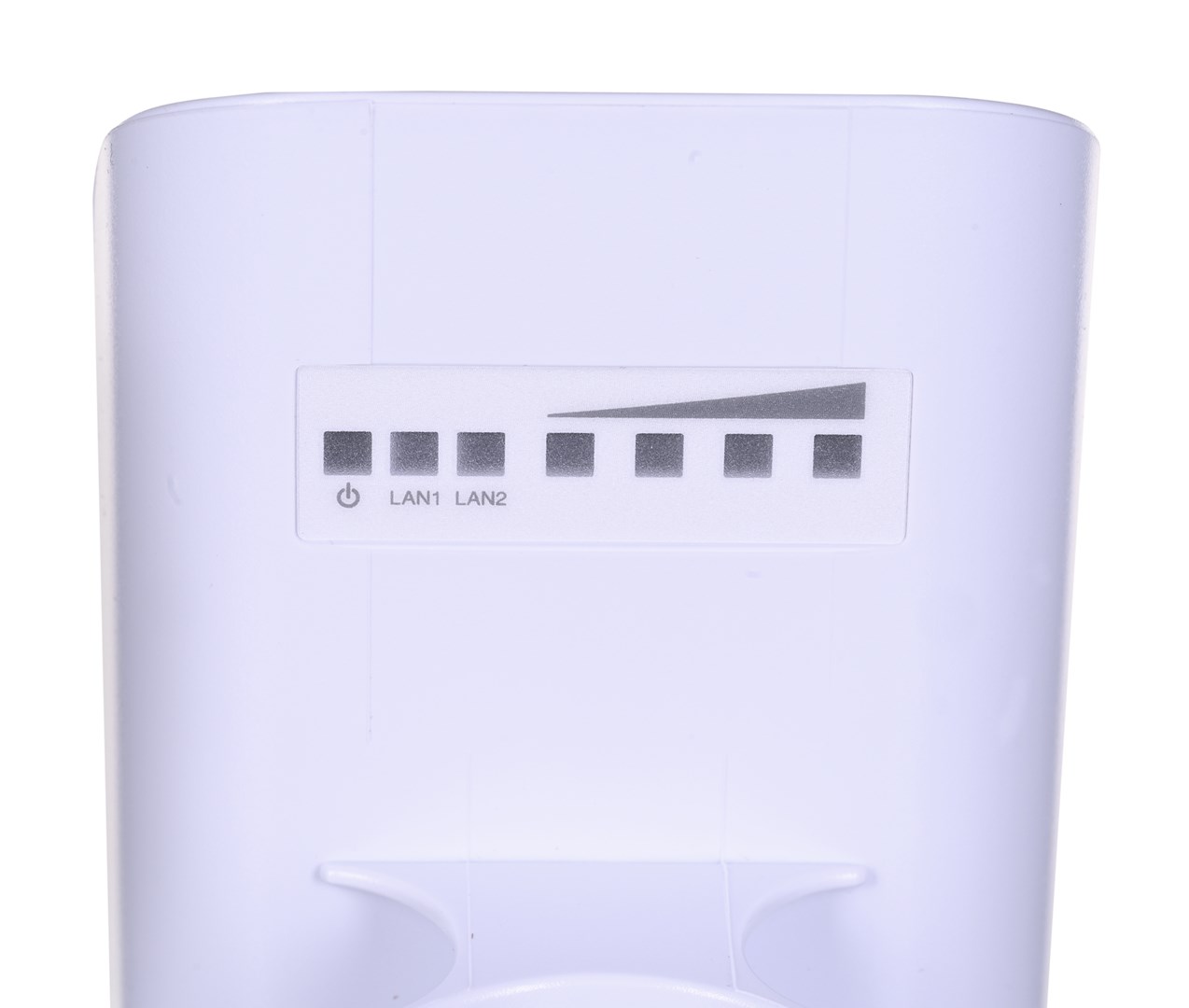

LED indicators
Yes
Internal
No

Antenna

Antenna gain level (max)
16 dBi

Performance

Built-in processor
Yes
Processor model
Qualcomm Atheros
Processor architecture
MIPS 24Kc
Flash memory
8 MB
Internal memory
64 MB

Certificates

Certification
FCC, CE, RoHS

Weight & dimensions

Width
80 mm
Depth
31 mm
Height
294 mm
Weight
400 g

Other features

Maximum operating distance
15000 m

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 80 °C

Logistics data

Harmonized System (HS) code
85176990
