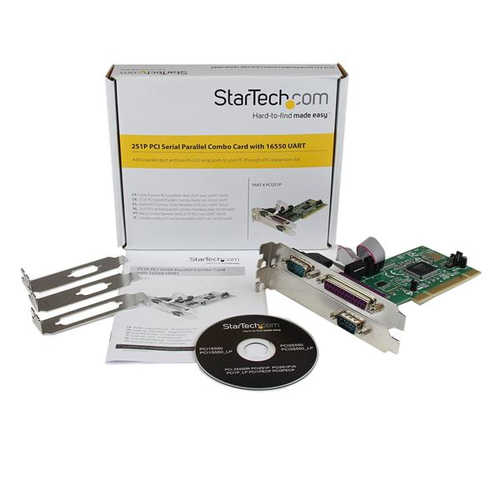

StarTech.com 2S1P PCI Serial Parallel Combo Card with 16550 UART

Add a parallel port and two RS-232 serial ports to your PC through a PCI expansion slot

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot.

Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy.

The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

RRP Price €55.67

Specifications

Ports & interfaces

Host interface
PCI
Output interface
Parallel, Serial
Expansion card form factor
Low-profile
Serial ports quantity
2
Serial interface type
RS-232
Parallel ports quantity
1

Design

Internal
Yes
Product colour
Green
Certification
CE, FCC, UL, TAA, REACH

Features

Chipset
ASIX - MCS9835CV
Baud rate
115.2 Kbit/s
FIFO (First In, First Out)
32 B

Operational conditions

Operating temperature (T-T)
-10 - 80 °C
Storage temperature (T-T)
-20 - 100 °C
Operating relative humidity (H-H)
5 - 85%

System requirements

Windows operating systems supported
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 95, Windows 98SE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Other operating systems supported
Windows Embedded POSReady 2009, Windows XP Embedded

Technical details

Compliance certificates
RoHS

Weight & dimensions

Width
20 mm
Depth
120 mm
Height
120 mm
Weight
66 g

Packaging data

Cables included
Serial
Mounting brackets included
Yes
Drivers included
Yes
Manual
Yes
Package width
175 mm
Package depth
145 mm
Package height
32 mm
Package weight
200 g

Logistics data

Harmonized System (HS) code
84733020
