QSFP40GER4ES - Cables & Adaptors by StarTech.com

QSFP40GER4ES - Cables & Adaptors by StarTech.com

Name: StarTech.com Dell EMC 3CSFP91 Compatible QSFP+ Module - 40GBASE-ER4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 40 km - 1270nm to 133...
Brand: StarTech.com
SKU: QSFP40GER4ES
Price: 3927.64 EUR
Availability: OutOfStock

40 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

100% Dell EMC Compatible. Guaranteed.

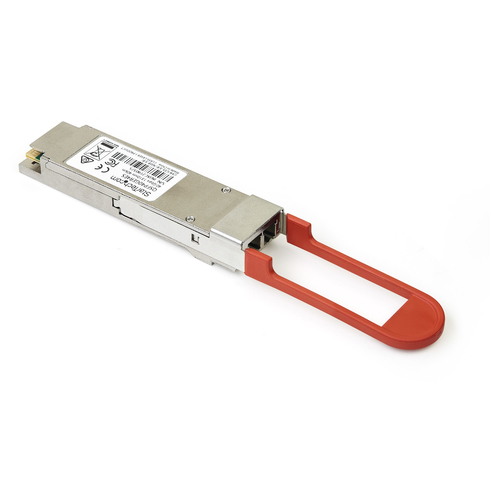

The QSFP40GER4ES is a Dell EMC QSFP-40G-ER4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand compatible switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-ER4Q compliant networks, with a maximum distance of up to 40 km (24.8 mi).

Technical Specifications:

• Wavelength: 1311nm

• Maximum Data Transfer Rate: 40 Gbps

• Type: Single Mode

• Connection Type: LC

• Maximum Transfer Distance: 40 km (24.8 mi)

• MTBF: 8,596,956 hours

• Power Consumption:

• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ module is hot-swappable making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a StarTech.com Lifetime Warranty and Free Lifetime Multilinugal Technical Support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the dependability and reliability you need to ensure consistent network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €3,927.64

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

QSFP+

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

MPO

Maximum transfer distance

40000 m

Wavelength

1311 nm

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

8596956 h

Brand compatibility

Dell

Compatible products

QSFP-40G-ER4

Power

Power consumption (typical)

1.6 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UL, REACH

Weight & dimensions

Width

58.4 mm

Depth

13.9 mm

Height

12.6 mm

Weight

40 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

120 mm

Package depth

205 mm

Package height

350 mm

Package weight

60 g

Logistics data

Master (outer) case width

120 mm

Master (outer) case length

205 mm

Harmonized System (HS) code

85369010

Master (outer) case height

350 mm

Products per master (outer) case

168 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.04 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
