SFP1000SXST - Cables & Adaptors by StarTech.com

SFP1000SXST - Cables & Adaptors by StarTech.com

Name: StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX~MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver -...
Brand: StarTech.com
SKU: SFP1000SXST
Price: 39.29 EUR
Availability: OutOfStock

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

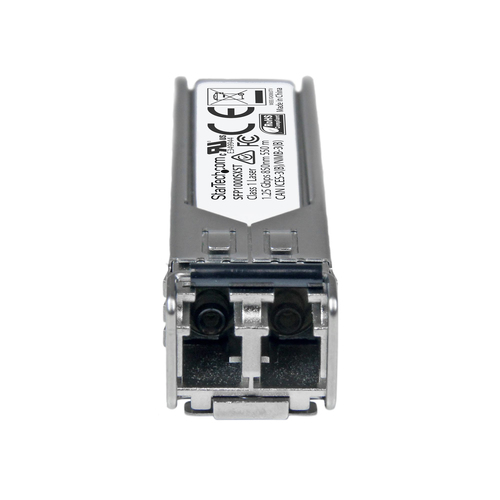

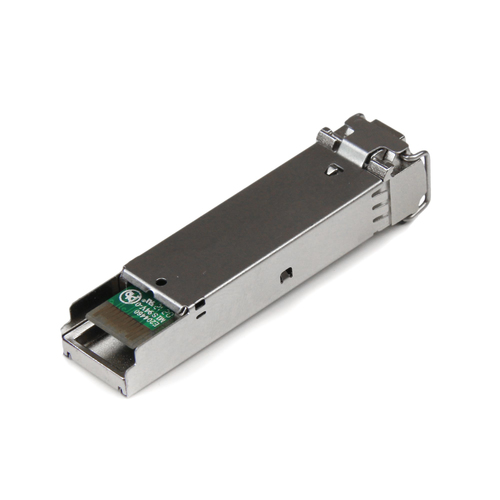

The SFP1000SXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €39.29

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1250 Mbit/s

Interface type

SFP

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

550 m

Wavelength

850 nm

Networking standards

IEEE 802.3z

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Wavelength-division multiplexing (WDM)

Features

Product colour

Silver

Housing material

Aluminium

Hot-Plug support

Yes

Power

Power consumption (typical)

1 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

13.9 mm

Depth

58.4 mm

Height

12.6 mm

Weight

23 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

120 mm

Package height

30 mm

Package weight

53 g

Logistics data

Master (outer) case width

250 mm

Master (outer) case length

300 mm

Harmonized System (HS) code

85369010

Master (outer) case height

200 mm

Products per master (outer) case

36 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.023 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
