SFP100BBXDST - Cables & Adaptors by StarTech.com

SFP100BBXDST - Cables & Adaptors by StarTech.com

Name: StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 MbE Gigabit Ethernet BiDi Fiber (...
Brand: StarTech.com
SKU: SFP100BBXDST
Price: 97.05 EUR
Availability: OutOfStock

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

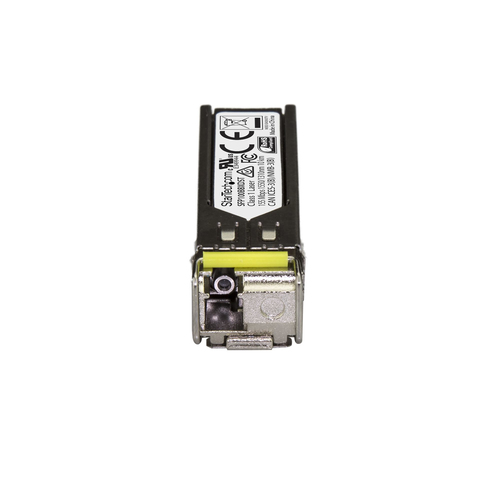

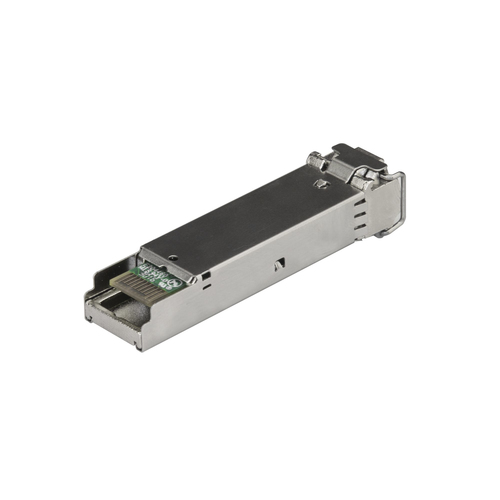

The SFP100BBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXUST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1550nmTx/1310nmRx
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

RRP Price €97.05

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

155 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

CXP, LC

SFP transceiver standard

Maximum transfer distance

10000 m

Tx power (min)

1550 dBmW

Rx power (min)

1310 dBmW

Networking standards

IEEE 802.3u

Duplex system

Full, Half

Digital Diagnostics Monitoring (DDM)

Yes

Wavelength-division multiplexing (WDM)

Yes

Features

Product colour

Silver

Housing material

Aluminium

Hot-Plug support

Yes

Power

Power consumption (typical)

1 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

16 mm

Depth

60 mm

Height

11 mm

Weight

18 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

92 mm

Package depth

117 mm

Package height

30 mm

Package weight

47 g

Logistics data

Master (outer) case width

193 mm

Master (outer) case length

307 mm

Harmonized System (HS) code

85369010

Master (outer) case height

162 mm

Products per master (outer) case

20 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.018 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
