SFP1GSXEMCST - Cables & Adaptors by StarTech.com

SFP1GSXEMCST - Cables & Adaptors by StarTech.com

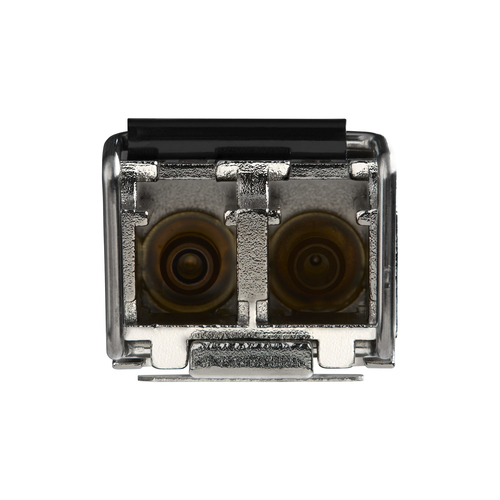

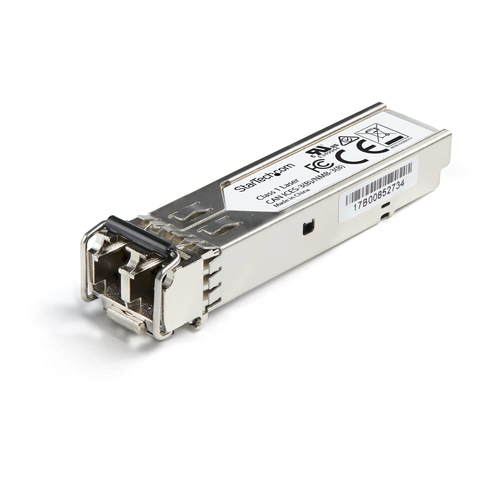

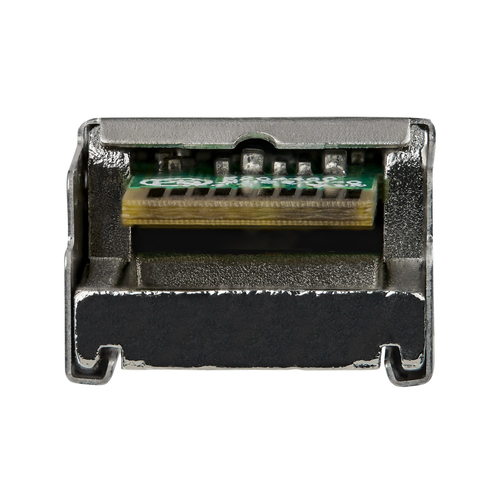

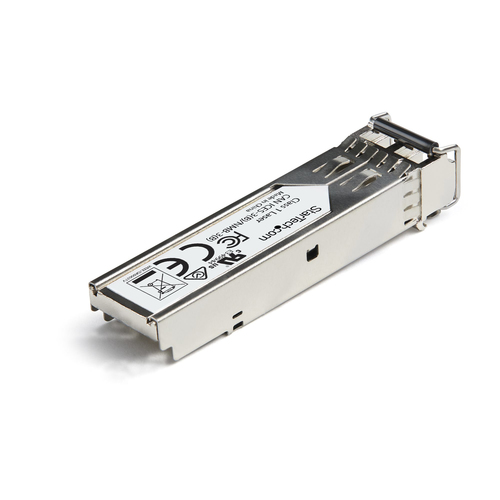

Name: StarTech.com Dell EMC SFP-1G-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m...
Brand: StarTech.com
SKU: SFP1GSXEMCST
Price: 36.83 EUR
Availability: InStock

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

The SFP1GSXEMCST is a Dell EMC SFP-1G-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 500 m (1640 ft)).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Multi Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 53,972,659 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

1 IN STOCK

RRP Price €36.83

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

550 m

Wavelength

850 nm

Fiber ethernet cabling technology

1000BASE

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

53972659 h

Brand compatibility

Dell

Compatible products

SFP-1G-SX

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UL, REACH

Weight & dimensions

Width

58.4 mm

Depth

13.9 mm

Height

12.6 mm

Weight

30 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

115 mm

Package height

31 mm

Package weight

50 g

Logistics data

Master (outer) case width

90 mm

Master (outer) case length

115 mm

Harmonized System (HS) code

85369010

Master (outer) case height

31 mm

Products per master (outer) case

1 pc(s)

Country of origin

China

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.03 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
