SFPF1302C - Cables & Adaptors by StarTech.com

SFPF1302C - Cables & Adaptors by StarTech.com

Name: StarTech.com Cisco GLC-FE-100FX Compatible SFP Transceiver Module - 100BASE-FX~Cisco GLC-FE-100FX Compatible SFP Module - 100BASE-FX - 100Mbps Multimo...
Brand: StarTech.com
SKU: SFPF1302C
Price: 56.58 EUR
Availability: InStock

100 Mbps | Multi Mode Fiber | LC | 2 km (1.2 mi) | Lifetime Warranty

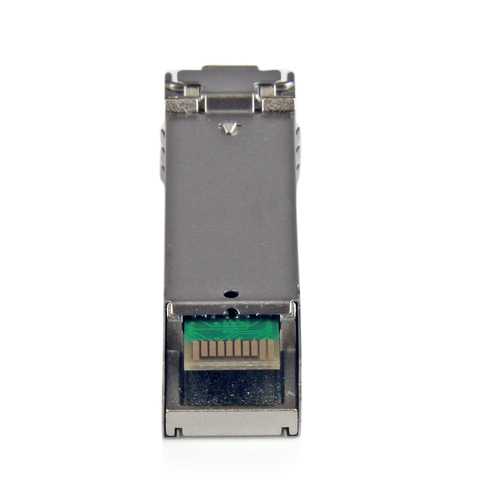

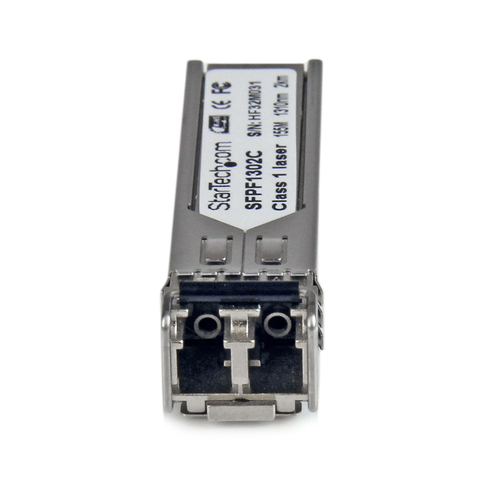

The SFPF1302C is a Cisco GLC-FE-100FX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 100 Mb connectivity over fiber cable, for 100BASE-FX compliant networks, with a maximum distance of up to 2 km (1.2 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 155 Mbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 2 km (1.2 mi)
• MTBF: 1,472,572 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

2 IN STOCK

RRP Price €56.58

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

155 Mbit/s

Interface type

SFP

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

2000 m

Wavelength

1300 nm

Networking standards

IEEE 802.3u

Duplex system

Full, Half

Digital Diagnostics Monitoring (DDM)

Yes

Wavelength-division multiplexing (WDM)

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

1472572 h

Power

Power consumption (typical)

1 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UL

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

30 - 70%

Weight & dimensions

Width

9 mm

Depth

65 mm

Height

14 mm

Weight

25 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

92 mm

Package depth

118 mm

Package height

33 mm

Package weight

95 g

Logistics data

Master (outer) case width

260 mm

Master (outer) case length

308 mm

Harmonized System (HS) code

85369010

Master (outer) case height

201 mm

Products per master (outer) case

36 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.025 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
