SMFIBLCLC10 - Cables & Adaptors by StarTech.com

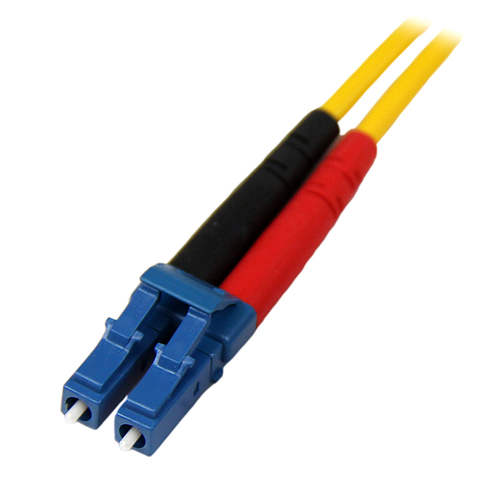

Name: StarTech.com 10m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/LC
Brand: StarTech.com
SKU: SMFIBLCLC10
Price: 27.07 EUR
Availability: InStock

Connect fiber network devices for high-speed transfers with LSZH rated cable

The SMFIBLCLC10 10m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

The StarTech.com Advantage

26 IN STOCK

RRP Price €27.07

Specifications

Features

Cable length

10 m

Fibre optic type

OS1

Connector 1

Connector 2

Connector 1 gender

Male

Connector 2 gender

Male

Product colour

Yellow

Full duplex

Yes

Core diameter

9 µm

Cladding diameter

125 µm

Fiber mode structure

Single-mode

Data transfer rate

100 Gbit/s

Jacket material

Low smoke zero halogen (LSZH)

Certificates

Compliance certificates

RoHS, CE

Weight & dimensions

Weight

140 g

Packaging data

Package width

200 mm

Package depth

220 mm

Package height

25 mm

Package weight

149 g

Logistics data

Master (outer) case width

407 mm

Harmonized System (HS) code

85447000

Master (outer) case length

439 mm

Master (outer) case height

403 mm

Products per master (outer) case

80 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.14 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
