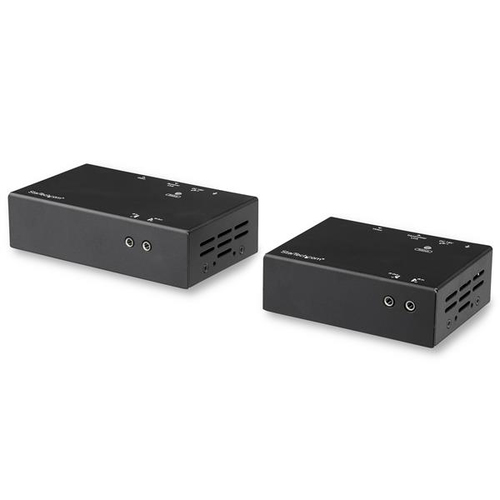

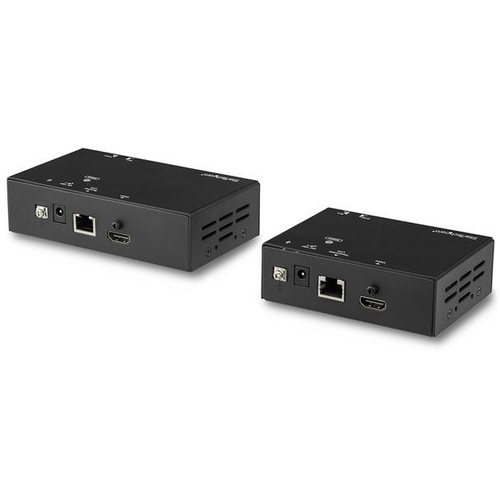

StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 70 m (230 ft.)

Extend HDMI over CAT5e/CAT6 cabling to a remote location, with support for 4K 60Hz at 35 m (115 ft.) and 1080p 60Hz at 70 m (230 ft.)

This HDMI® over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 70 m (230 ft.) away.

Get 4K at 60Hz from 35 m (115 ft.) away

This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 35 m (115 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 70 m (230 ft.) from your HDMI source.

With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.

With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

Simplify your setup

The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you can extend an HDMI signal using your building's existing infrastructure. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.

The ST121HDBT20S is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage

ON ORDER

RRP Price €450.46

Specifications

Features

Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Maximum refresh rate
60 Hz
Audio output channels
7.1 channels
LED indicators
Status
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Material
Aluminium
Daisy chain
No
Rubber feet
Yes
Product colour
Black
Certification
CE, FCC, TAA, REACH

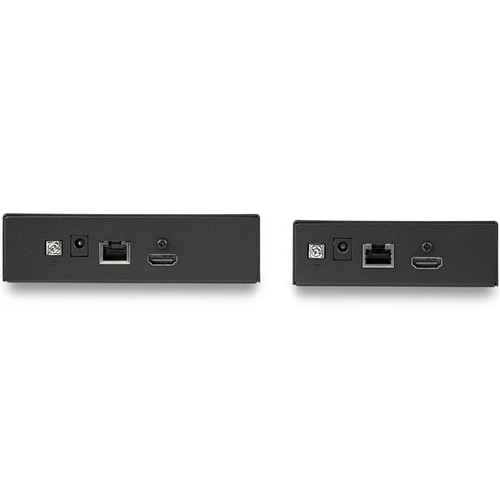

Ports & interfaces

Connectivity technology
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Remote (IR) input
2
Remote (IR) output
2
DC-in jack
Yes

Power

AC input voltage
100 - 240 V
Operating voltage
18 V
Input current
0.6 A
Output current
1 A
External power adapter
Yes
Power plug type
Type M

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
76 mm
Depth
293 mm
Height
26 mm
Weight
1.6 kg

Packaging data

Package width
206 mm
Package depth
280 mm
Package height
62 mm
Package weight
800 g

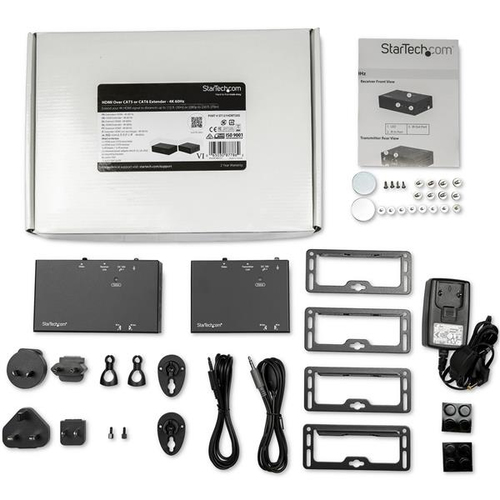

Packaging content

AC adapter included
Yes
Included power plug types
ANZ, EU, JP, NA, UK
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Mounting brackets included
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Master (outer) case width
323 mm
Master (outer) case length
410 mm
Master (outer) case height
275 mm
Products per master (outer) case
6 pc(s)
