StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio

Name: StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio
Brand: StarTech.com
SKU: SV231DPUA
Price: 324.39 EUR
Availability: InStock

Control two computers from a single console, with high-resolution DisplayPort video, USB keyboard, mouse, and audio

The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.

A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)

1 IN STOCK

RRP Price €324.39

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPorts quantity

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Console USB ports quantity

USB hub

Yes

USB connector type

USB Type-A

Audio connections

Yes

Headphone outputs

Number of microphone inputs

DC-in jack

Yes

Network

Ethernet LAN

Performance

HD type

4K Ultra HD

Maximum resolution

3840 x 2400 pixels

DDC2B support

Yes

Hot-Plug support

Yes

Plug and Play

Yes

Daisy chain

Audio channels

7.1

Design

Rack mounting

Product colour

Black

Housing material

Steel

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Certification

CE, UL, FCC, REACH

Display

Built-in display

On Screen Display (OSD)

Power

Input voltage

110 - 240 V

Input current

0.8 A

Output voltage

12 V

Output current

2 A

Power consumption (typical)

24 W

External power adapter

Yes

Power plug type

Type M

Compatible power plug types

AU, EU, UK, US

Sustainability

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

220 mm

Depth

130 mm

Height

44 mm

Weight

1.1 kg

Packaging data

Package width

100 mm

Package depth

250 mm

Package height

181 mm

Package weight

1.3 kg

Packaging content

Manual

Yes

AC adapter included

Yes

Rubber feet

Yes

Other features

Audio support

IP control

Logistics data

Harmonized System (HS) code

85176200

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

1.1 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

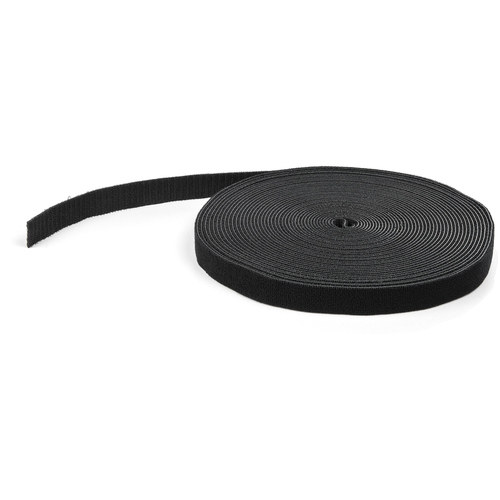

StarTech.com 50ft Hook and Loop Roll - Cut-to-Size Reusable Cable Ties - Bulk Industrial Wire Fastener Tape /Adjustable Fabric Wraps Black / Resuable Self Gripping Cable Management Straps Cables & Adaptors

Organize the cables in your server rack or cabinet, by bundling them together using this cut-to-size hook-and-loop wrapThis 50 ft. roll of hook-and-loop cable tie makes it easy to keep your cables neat and tidy by binding them together or binding them to a structure. The self-gripping fabric can be cut to any size and it's 3/4 in. (19 mm) wide which enables a slim wrap-around solution for any computer, appliance or electronics cable, in virtually any environment.Hassle-free cable managementThis roll of cable tie offers a quick and easy solution for bundling cables together and securing your cables for better routing. Properly routed cables help protect your equipment, by reducing cable tension and preventing excessive heat caused by unorganized cables restricting airflow.It uses a hook-and-loop fastening method to ensure a sturdy grip that's easy to apply. With the hook mechanism on one side of the tape and a loop mechanism on the other, you can easily wrap it around your cable bundle, and fasten the cable tie by draping it over itself.Customize the length of your cable tieWhether your bundle consists of two small-gauge cables or many large-gauge cables, you can rest assured this roll of cable tie will handle it perfectly. You can cut the hook-and-loop fabric to size using household scissors, meaning you can choose the perfect length for your specific application.Versatile fastening solutionThe versatility of the cable tie makes the roll the ideal tool for you to keep on hand in your office, server room or industrial environment. While the most common use for this hook-and-loop fabric is binding and routing cables, you can also use it for other materials in your IT environment such as tools or raceways. The ties are easy to remove, reusable and adjustable, avoiding the hassle and waste of traditional zip ties.This roll of cable tie is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

€14.33

StarTech.com 25ft Hook and Loop Roll - Cut-to-Size Reusable Cable Ties - Bulk Industrial Wire Fastener Tape /Adjustable Fabric Wraps Black / Resuable Self Gripping Cable Management Straps Cables & Adaptors

Organize the cables in your server rack or cabinet, by bundling them together using this cut-to-size hook-and-loop wrapThis 25 ft. roll of hook-and-loop cable tie makes it easy to keep your cables neat and tidy by binding them together or binding them to a structure. The self-gripping fabric can be cut to any size and is 3/4 in. (19 mm) wide, which offers a slim wrap-around solution for any computer, appliance or electronics cable, in virtually any environment.Hassle-free cable managementThis roll of cable tie offers a quick and easy solution for bundling cables together and securing your cables for better routing. Properly routed cables help protect your equipment, by reducing cable tension and preventing excessive heat caused by unorganized cables restricting airflow.It uses a hook-and-loop fastening method to ensure a sturdy grip that's easy to apply. With the hook mechanism on one side of the tape and a loop mechanism on the other, you can easily wrap it around your cable bundle, and fasten the cable tie by draping it over itself.Customize the length of your cable tieWhether your bundle consists of two small-gauge cables or many large-gauge cables, you can rest assured this roll of cable tie will handle it perfectly. You can cut the hook-and-loop fabric to size using household scissors, meaning you can choose the perfect length for your specific application.Versatile fastening solutionThe versatility of the cable tie makes the roll the ideal tool for you to keep on hand in your office, server room or industrial environment.While the most common use for this hook-and-loop fabric is binding and routing cables, you can also use it for other materials in your IT environment such as tools or raceways. The ties are easy to remove, reusable and adjustable, avoiding the hassle and waste of traditional zip ties.This roll of cable tie is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

€6.95

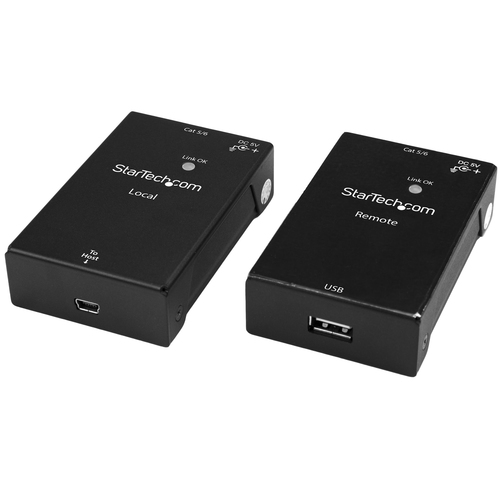

StarTech.com USB 2.0 Extender over Cat5e/Cat6 Cable (RJ45) - Up to 165ft (50m) - High Speed USB Port Extender Adapter Kit - Powered - USB over Ethernet Cable Extender - 480Mbps - Metal Cables & Adaptors

Connect a USB 2.0 device to your computer over long distances, using this single-port USB extenderHere's a versatile and cost-effective USB 2.0 extender. It gives you the freedom you need to place your USB device further away, making it perfect for the homes, offices, classrooms, and many other environments. Now, you can easily access and use your USB 2.0 device in a remote location, up to 165 ft. (50 m) away, using Cat5 or Cat6 cable.Eliminate hassle and smash distance limitationsThis USB extender overcomes the 16 ft. cable length limitations of traditional USB 2.0 cables, so you can create a more efficient, more flexible workspace.It's an inexpensive USB-to-Ethernet solution that's ideal for virtually any USB 2.0 device. You can connect a webcam at the back of a classroom, or a printer in another room at the office, all up to 50 m away from your host computer.Plus, with a power adapter included for the remote unit, you can connect power-hungry USB devices such as external hard drives.Rugged durability and peace of mindUnlike other USB extenders that feature a plastic housing, this extender offers a metal casing that offers rugged durability. Whether the extender is installed in a permanent location, or will be moved from place to place, it gives you the peace of mind that your USB peripheral remains connected and accessible, right where you need it.Supports any operating system as well as older devicesThe USB 2.0-over-Cat5-or-Cat6 extender is OS independent, so it supports a variety of operating systems. Setup is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.The StarTech.com Advantage

€165.18

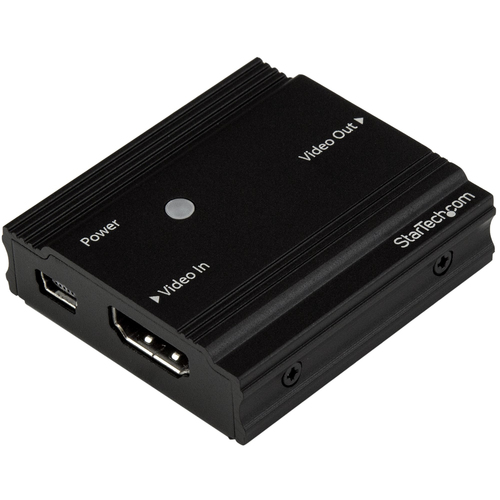

StarTech.com HDMI Signal Booster - HDMI Extender - 4K 60Hz Cables & Adaptors

Use this repeater to amplify your 4K HDMI signal and extend it 30 ft. using a standard HDMI cableThis 4K HDMI® signal booster lets you increase the signal strength of your HDMI video source so it can travel greater distances using standard HDMI cables. You can achieve resolutions up to 4K at 60Hz at distances of up to 30 ft. (10 m), and depending on your desired resolution, the booster supports distances up to 115 ft. (35 m) away at 1080p 60Hz resolution.To install the booster, place it between two HDMI cables. Reference the table below for supported resolutions and cable lengths.Cable lengthfrom sourceCable lengthto displayTotal cable lengthMaximumresolution50 ft. (15 m)65 ft. (20 m)115 ft. (35 m)1080p (60 Hz) - 1920x108032 ft. (10 m)50 ft. (15 m)82 ft. (25 m)4K (30 Hz) - 3840x216015 ft. (5 m)15 ft. (5 m)30 ft. (10 m)4K (60 Hz) - 3840x2160Maintains Ultra HD 4K video signals at 60HzWhen you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few feet. Using this HDMI signal booster ensures that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 30 ft. (10 m).You can achieve even longer distances at lower resolutions -- up to 4K at 30Hz, at up to 82 ft. (25 m), and 1080p at 60Hz at up to 115 ft. (35 m).Easy and discreet installationWith its small form factor design and no external power adapter, the HDMI booster is easy to hide, for a discreet installation. By extending your video signal using standard HDMI cables, the 4K booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.Supports a variety of distancesSupport for a variety of extension distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.Note: To achieve resolutions up to 4K60, your video source, display and cabling must support HDMI 2.0.The HDBOOST4K is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.The StarTech.com Advantage

€76.68

StarTech.com Vertical Wall-Mount Server Rack - Solid Steel - 6U Cables & Adaptors

Mount server, network or telecommunications devices vertically with this 6U wall-mountable rackThis wall-mount bracket provides 6U of storage space to vertically mount your equipment on the wall. The 6U wall-mount rack is EIA-310-D compliant to ensure compatibility with any 19” rack-mount equipment, such as your power strips, telecommunication, network and A/V devices.Save space by mounting your equipment to the wall or other surfaceThe 6U rack optimizes your working space by mounting equipment to your wall instead of taking up desk space or other surface area. It's perfect for your SoHo (small office, home office) environment, server room or any other location where available space is limited.Ensure a secure and hassle-free installationThe wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your expensive, mission-critical equipment. Also, because the wall mounting holes are positioned 16”apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. Cage nuts and screws are also included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.Customize your workspace with versatile installation optionsTo provide a suitable mounting solution for virtually any surface such as your wall, ceiling or desk, the 6U bracket features separate mounting patterns for both ceilings and walls. This means that you can mount the bracket vertically to your wall or horizontally to your ceiling or under your desk.If you're looking for a mountable storage solution with fewer rack units, StarTech.com also offers a 1U wall-mount bracket, a 2U wall-mount bracket, a 3U wall-mount bracket and a 4U wall-mount bracket.The RK619WALLV is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage- Save space in your office or server room by mounting IT or AV equipment vertically to a wall or horizontally under a desk or work bench- Hassle-free setup with wall-mount installation holes spaced 16 in. apart, matching standard construction framework- Easy equipment installation, with cage nuts and screws included

€102.22

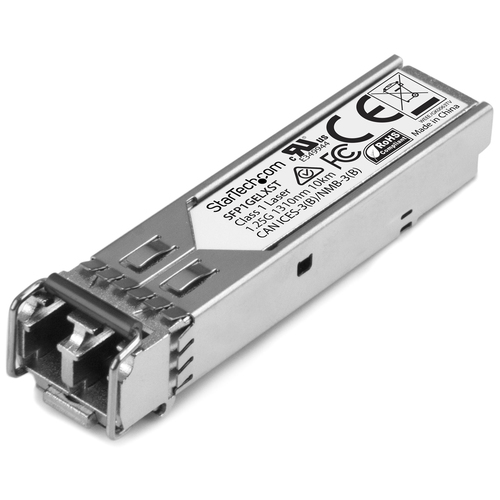

StarTech.com Juniper SFP-1GE-LX Compatible SFP Transceiver Module - 1000BASE-LX~Juniper SFP-1GE-LX Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cables & Adaptors

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP1GELXST is a Juniper SFP-1GE-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper® brand switches and routers. It delivers dependable 1GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:• Wavelength: 1310 nm• Maximum Data Transfer Rate: 1.25 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• MTBF: 3,092,408 hours• Power Consumption: Less than 1 Watt• Digital Diagnostics Monitoring (DDM): YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€56.06

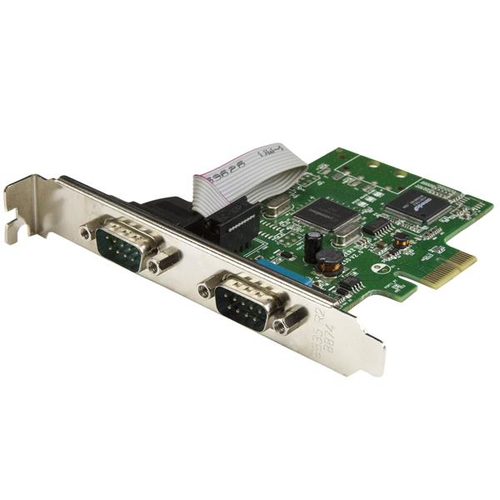

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Cables & Adaptors

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slotThis PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.Convenient system upgrades through PCIeThe PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.High-performance serial communicationThe PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.Easy installationThe serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.The StarTech.com Advantage

€64.55

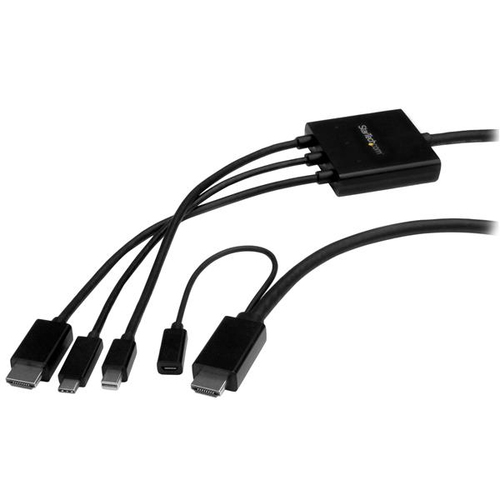

StarTech.com USB-C, HDMI or Mini DisplayPort to HDMI Converter Cable - 2 m (6 ft.) Cables & Adaptors

Connect your USB Type-C, HDMI or Mini DisplayPort laptop to an HDMI display or projectorThis unique adapter cable lets you connect almost any laptop or desktop computer to an HDMI display or projector. It supports the USB-C, HDMI and Mini DisplayPort output from your computer, and video resolutions up to Ultra HD 4K.The adapter is compatible with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.Simple boardroom setupThis adapter cable is ideal for your boardroom’s HDMI display or projector. You can reduce clutter and eliminate the need for multiple adapters on your boardroom table by providing a single adapter cable that can support a variety of signals.One adapter for multiple usersThe adapter cable supports multiple input signal types, so you’ll be able to accommodate a variety of user needs. Employees and guests can plug in their USB Type-C, HDMI or mDP laptops and deliver their presentations using your boardroom’s HDMI display, without having to carry their own adapters.Astonishing picture qualityThis adapter cable ensures you can maintain an astonishing picture quality with four times the resolution of 1080p. The adapter is also backward compatible with lower resolution displays and video sources. With support for high-definition resolutions of 1080p and 720p, you can future-proof your existing setup for 4K video.USB-poweredThe adapter can be powered through the provided Micro-USB cable by connecting the cable from the adapter to a USB port on your laptop or the HDMI display. You can connect your laptop to either input on the adapter cable, and share presentations.The CMDPHD2HD is backed by a 3-year StarTech.com warranty and free lifetime technical support.Note: Your USB-C equipped device must support video to work with this adapter.The StarTech.com Advantage- Avoid the hassle of using multiple adapters in a single boardroom or classroom- Be prepared for all of your presentations and different user requirements- Astonishing video quality with support for video resolutions up to 4K at 30Hz

€66.87

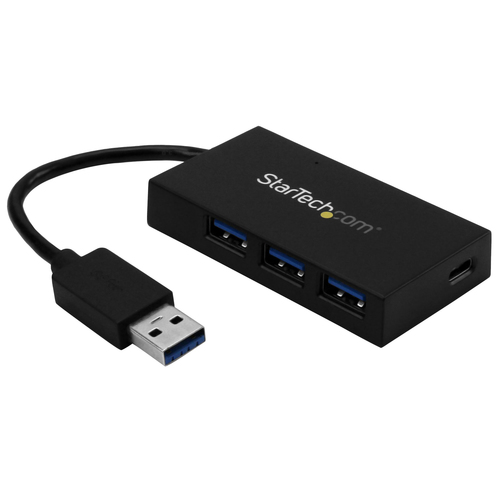

StarTech.com 4 Port USB 3.0 Hub - USB Type-A Hub with 1x USB-C & 3x USB-A (SuperSpeed 5Gbps) - USB Bus or Self-Powered - Portable USB 3.1/3.2 Gen 1 BC 1.2 Charging Hub w/ Power Adapter~4 Port USB 3.0 Hub - USB Type-A Hub with 1x USB-C & 3x USB-A (SuperSpeed 5Gbps) - USB Bus or Self-Powered - Portable USB 3.2 Gen 1 BC 1.2 Charging Hub w/ Power Adapter Cables & Adaptors

Add four USB 3.2 Gen 1 (5Gbps) ports to your laptop, including three USB Type-A charge-and-sync ports, and one USB Type-C portHere’s an easy way to connect a wider range of peripherals to your laptop. This TAA compliant 4-port USB 3.2 Gen 1 hub turns your laptop’s USB-A port into three USB-A charge-and-sync ports (5Gbps), and one USB-C™ port.Now, you can use your laptop’s traditional USB Type-A port to expand your connectivity, fast-charge your smartphone or tablet, and connect your newer USB Type-C™ device to your laptop.Expand your USB connectivityThis USB 3.2 Gen 1 hub lets you expand your USB connection options using the USB-A port on your computer. It offers three USB-A ports and one USB-C port, so you can still connect traditional USB devices now, and be ready to connect USB Type-C devices in the future.It’s the ideal way to connect your new USB-C equipped device to your laptop’s traditional USB-A port.Charge and sync your mobile devicesWith three fast-charge ports, this hub helps ensure that your tablets and smartphones are charged and ready to use when you need them. Each USB-A port supports USB Battery Charging Specification 1.2, so you can charge and sync up to three devices simultaneously. (The charge provided depends on the number of devices connected and the amount of power each device draws. The hub’s USB-C port does not support charging.)Designed for versatilityThis self-powered USB hub comes with an external power adapter to support power-hungry USB devices, such as larger external drives and enclosures, which require more power than USB power can provide on its own. You can install the versatile USB 3.2 Gen 1 hub virtually anywhere, because it takes up minimal space on a desk, and fits perfectly in hot-desk or BYOD environments.With its compact and lightweight design, the 4-port USB hub is also ideal for mobile use. You can simply tuck the hub and power adapter into your laptop bag to expand your connectivity when you’re traveling.Save time and moneyThis hub can help if you need a way to connect your newer USB-C peripherals to your existing laptop. Now you can access your USB-C device while avoiding the cost of purchasing a newer laptop that features a USB Type-C port.The self-powered USB 3.2 Gen 1 hub installs quickly with no additional drivers or software required, and it’s compatible with virtually all operating systems.The HB30A3A1CSFS is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

€55.26

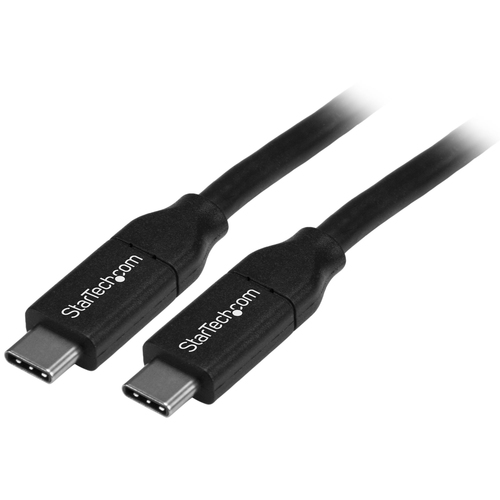

StarTech.com USB-C Cable with Power Delivery (5A) - M/M - 4 m (13 ft.) - USB 2.0 - USB-IF Certified Cables & Adaptors
