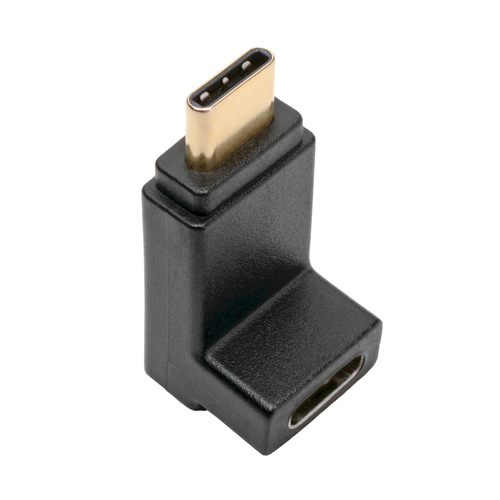

Tripp Lite U420-000-F-UD USB-C Right Angle Adapter (M/F) , 3.1, Gen 2, 10 Gbps, Thunderbolt 3 Compatible, 3A Rating

Tripp Lite U420-000-F-UD USB-C Right Angle Adapter (M/F) , 3.1, Gen 2, 10 Gbps, Thunderbolt 3 Compatible, 3A Rating

Name: Tripp Lite U420-000-F-UD USB-C Right Angle Adapter (M/F) , 3.1, Gen 2, 10 Gbps, Thunderbolt 3 Compatible, 3A Rating
Brand: Eaton
SKU: U420-000-F-UD
Price: 8.55 EUR
Availability: OutOfStock

USB Type-C to USB Type-C Adapter Connects an Existing USB-C Device to Your USB-C Laptop
This compact adapter allows you to connect USB-C devices to your smartphone, tablet, laptop, MacBook, Chromebook or Ultrabook’s USB-C or Thunderbolt 3 port. External hard drives, hubs, wall chargers and other peripherals with USB-C ports will be able to communicate with your computer or other USB-C mobile device.

Transfers Data and Charges Devices at Lightning-Fast USB 3.1 Gen 2 Speeds
The adapter supports USB 3.1 Gen 2 data transfer rates up to 10 Gbps, which is twice as fast as USB 3.1 Gen 1. It also provides power output up to 3 amps (60 watts), which is sufficient for fast-charging, syncing and powering most devices.

Reversible USB-C Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time. The unit is backward compatible with USB 3.0 devices.

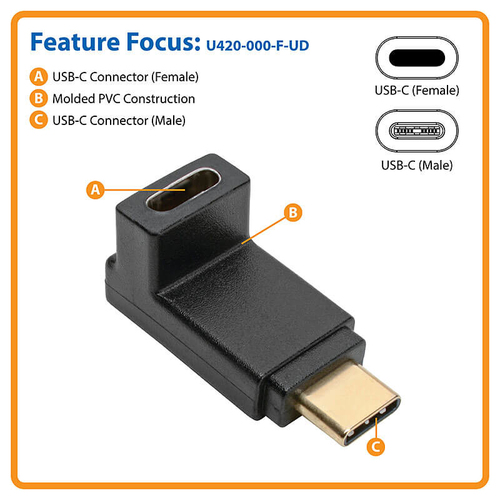

Right-Angle USB-C Connector Makes Installation in Tight Spaces Easier
The space-saving right-angle female connector is easy to install in confined spaces, such as behind your computer desk or workstation. You can install the unit facing either up or down to gain convenient vertical access to that USB-C connection.

ON ORDER

SKU: U420-000-F-UD

Manufacturer:

Eaton

RRP Price €8.55

Specifications

Ports & interfaces

Connector 1

USB C

Connector 2

USB C

Connector 1 gender

Male

Connector 2 gender

Female

Connector contacts plating

Gold

Performance

Product colour

Black

Housing material

Polyvinyl chloride (PVC)

Data transfer rate

10 Gbit/s

Power

Output current

3000 mA

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 70 °C

Relative humidity

5 - 90%

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, REACH

Packaging data

Package width

99.1 mm

Package depth

12.7 mm

Package height

149.9 mm

Package weight

10 g

Package type

Polybag

Logistics data

Country of origin

Vietnam

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332218367

Master (outer) case width

348 mm

Master (outer) case length

25.4 mm

Master (outer) case height

348 mm

Master (outer) case gross weight

110 g

Harmonized System (HS) code

8544.42.2000

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.01 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
