U436-06N-2P5 - Cables & Adaptors by Eaton

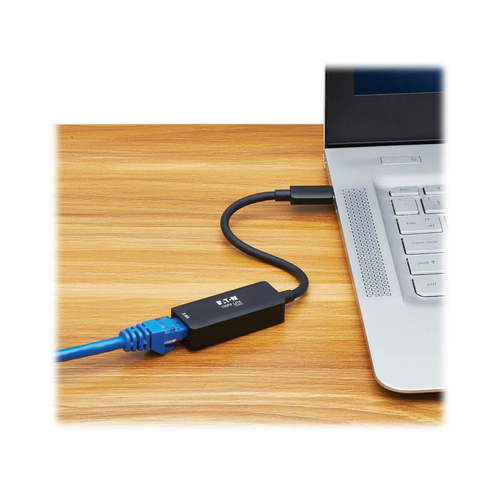

USB-C 3.2 to Gigabit Ethernet Adapter Connects you to a Wired 2.5G NetworkThis USB-C network adapter instantly connects your MacBook, tablet or Windows laptop to a wired network through a USB-C or Thunderbolt port. No internal Ethernet card is required. Ideal for settings in which Wi-Fi is unavailable, weak or spotty, this USB 3.2 Gen 1 adapter lets you enjoy Ethernet speeds up to 2.5 Gbps (when connected to Cat8 cabling) for large file downloads, video conferences, online gaming and high-definition live streaming without buffering. It’s also backward compatible with 10/100/1000 Mbps networks to ensure compatibility with all your devices.Easy Installation Gets You Online Almost ImmediatelyThis bus-powered network adapter requires no external power source. Just connect the built-in USB 3.2 Gen 1 Type-C plug to your computer, and use a Cat5e/6/6a/8 cable (sold separately) to connect the RJ45 end to a network (a quick driver installation may be required). LEDs indicate when you’re connected to a network and when data is being transferred. The compact unit fits easily into a pocket, purse, backpack or laptop bag for instant file transfers where needed.

ON ORDER

RRP Price €33.56

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
USB Type-C
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
USB connector form factor
Straight

Network

Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
Full duplex
Yes

Design

Component for
Laptop
Product colour
Black
Internal
No
Country of origin
Vietnam

Power

USB powered
Yes

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 90%

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Width
21.5 mm
Depth
13 mm
Height
53 mm

Packaging data

Package width
228.6 mm
Package depth
12.7 mm
Package height
177.8 mm
Package weight
30 g

Technical details

Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE

Logistics data

Harmonized System (HS) code
8517.62.0090
Master (outer) case width
398.8 mm
Master (outer) case length
25.4 mm
Master (outer) case height
350.5 mm
Master (outer) case gross weight
300 g
Products per master (outer) case
10 pc(s)
