USB32HD4 - Cables & Adaptors by StarTech.com

USB 3.0 External Video Adapter | 4x 1080p | Quad Monitor

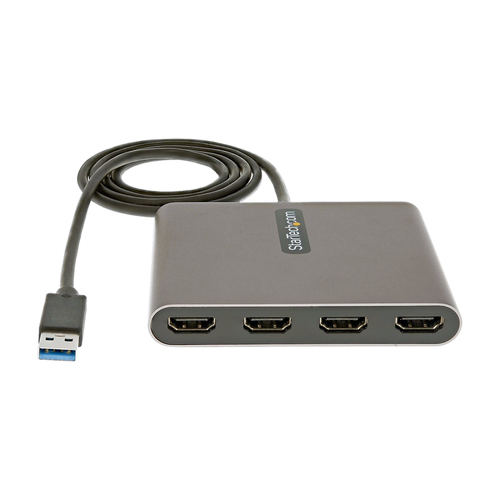

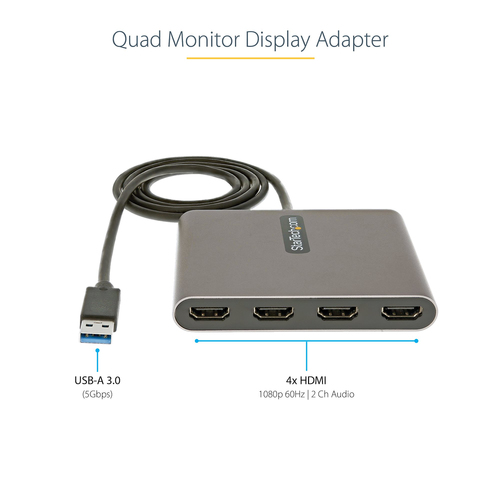

This USB 3.0 to HDMI® adapter lets you extend your desktop by adding four independent HDMI monitors or displays to your laptop or desktop computer using a single USB Type-A port.

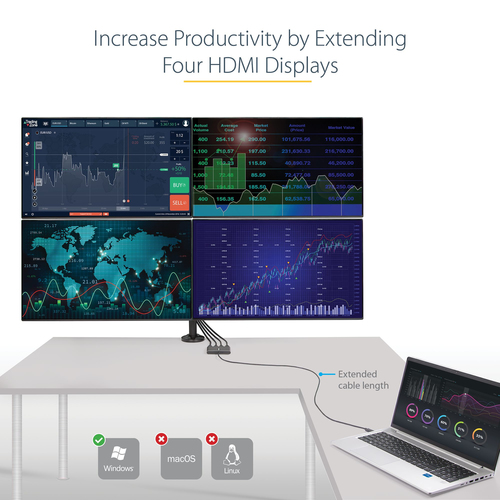

Increase Your Productivity

This USB-A to 4 HDMI adapter features four video outputs, boosting your productivity by giving you more screen space to work from. With multiple displays you have the freedom to access multiple applications at the same time and reference material on one display while you compose on the other. Use the USB to HDMI multi-monitor adapter to extend or mirror your displays.

High-Definition Video & Audio

Leveraging the USB 3.0 interface, this quad monitor adapter dongle delivers high-definition resolutions up to 1920x1080 (1080p) on all four ports. The adapter also supports 2-channel audio through HDMI.

Easy Setup

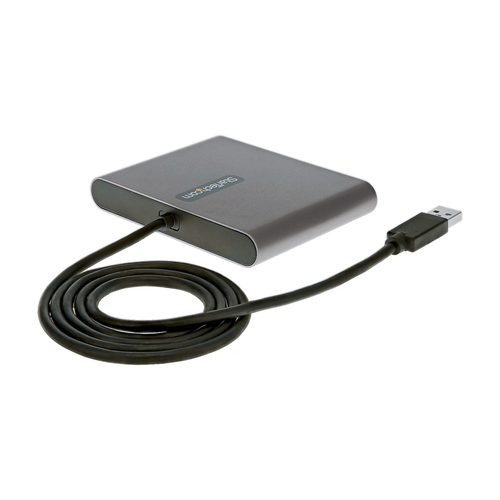

The USB Type-A to HDMI display adapter converter is equipped with a 3.3 ft. (1 m) attached USB-A cable that provides added distance between the adapter and your host device, ensuring a flexible setup. It also supports an automatic driver installation for ease of use.

The external video adapter is bus-powered, with no external power required.

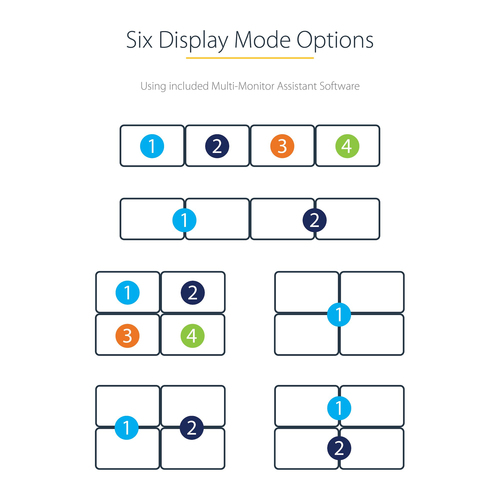

Multi-Monitor Assistant Software

The Multi-Monitor Assistant application provides a user interface that assists users with multitasking, and allows you to quickly switch from monitor to monitor. It enables additional features, assisting users with dragging and dropping, optional zooming, split scaling and cascading windows to the main display.

USB32HD4 is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note:

The adapter is only capable of mirroring up to two additional displays.

The StarTech.com Advantage

2 IN STOCK

RRP Price €110.20

Specifications

Performance

USB connector type
USB Type-A
USB connector gender
Male
USB connector form factor
Straight
USB version
3.2 Gen 1 (3.1 Gen 1)
DVI output
No
HDMI output
Yes
DisplayPort output
No
Number of displays supported
4
HDMI ports quantity
4
Maximum resolution
1920 x 1080 pixels
Refresh rate at maximum resolution
60 Hz
Chipset
Trigger T6-688SL, IT66121

Design

Product colour
Grey
Housing material
Aluminium
Integrated USB cable
Yes

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64

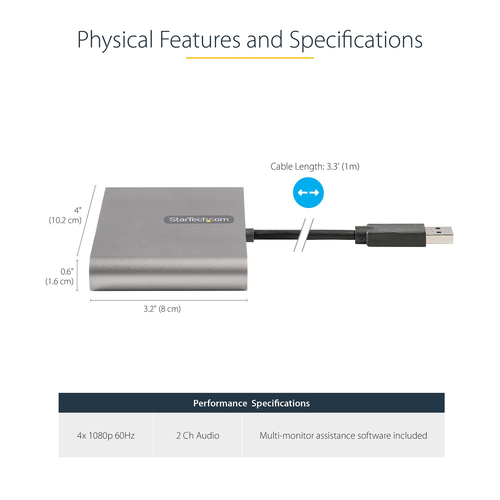

Weight & dimensions

Width
80 mm
Depth
101 mm
Height
16 mm
Weight
180 g
USB cable length
1 m

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 75 °C
Operating relative humidity (H-H)
0 - 85%

Packaging data

Package width
207 mm
Package depth
144 mm
Package height
38 mm
Package weight
280 g

Packaging content

Quick installation guide
Yes

Technical details

Compliance certificates
CE, RoHS

Logistics data

Products per master (outer) case
40 pc(s)
Master (outer) case width
445 mm
Master (outer) case length
310 mm
Master (outer) case height
430 mm
Harmonized System (HS) code
84733020
