21050-PC-SERIAL-CARD - Cables & Adaptors by StarTech.com

Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1

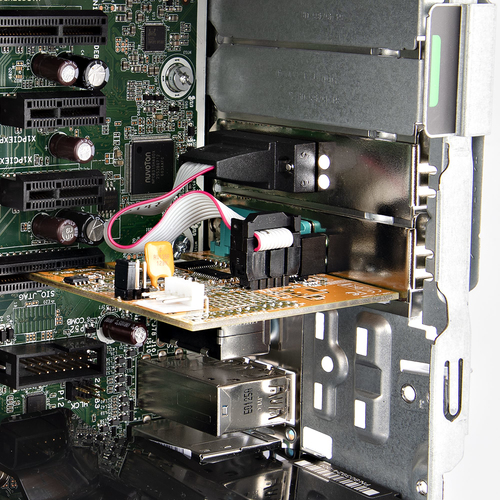

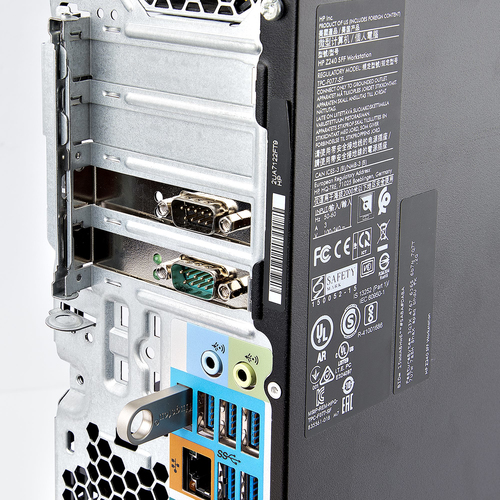

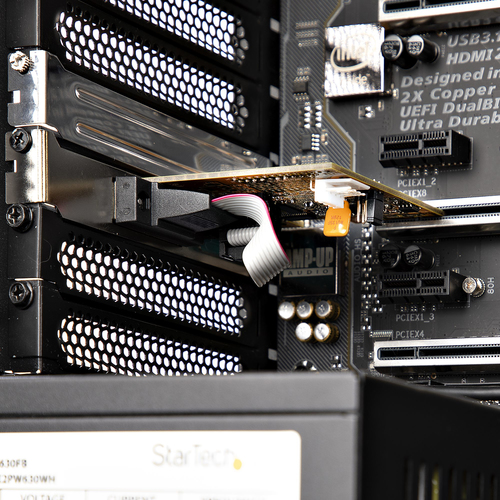

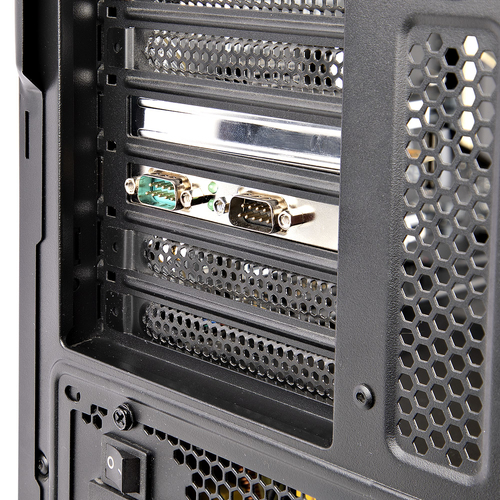

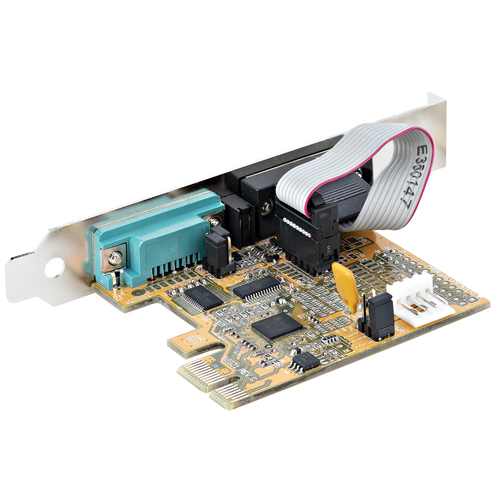

Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.

Legacy Connectivity

Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.

Connect with Ease

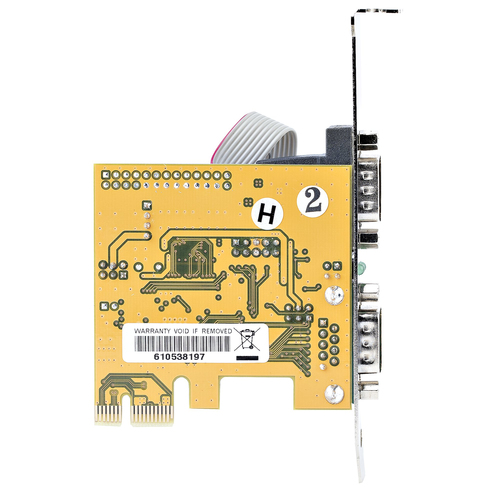

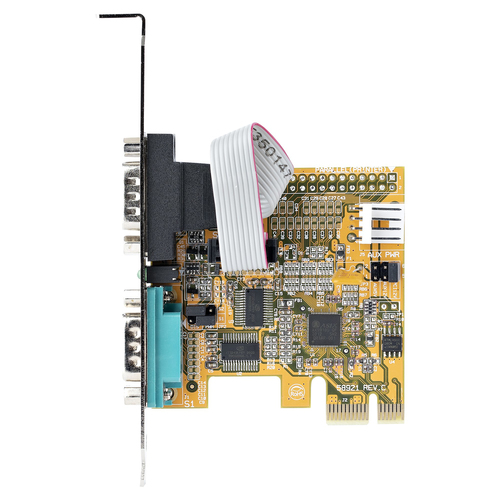

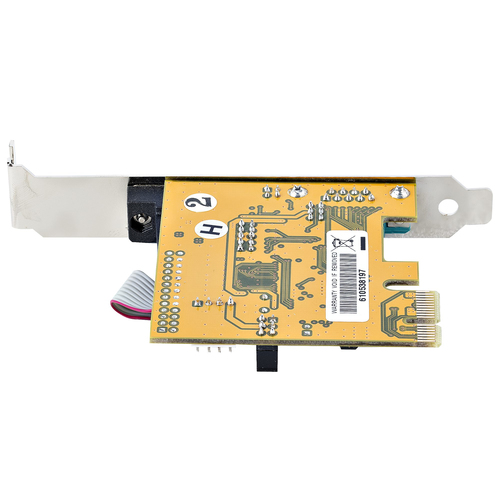

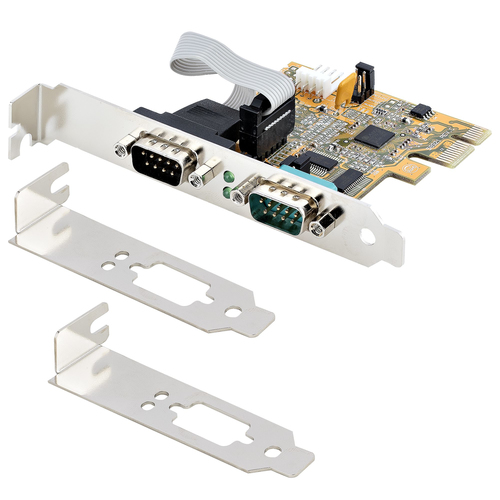

The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.

21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

3 IN STOCK

RRP Price €73.33

Specifications

Ports & interfaces

Host interface
PCIe
Output interface
Serial
Expansion card form factor
Full-height / Low-profile
Expansion card standard
PCI 2.0
Serial ports quantity
2
Serial interface type
RS-232

Design

Internal
Yes
Product colour
Yellow
LED indicators
Activity

Features

Chipset
ASIX - AX99100, ASIX - ZT3243LFEY
Baud rate
921.6 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5, 6, 7, 8, 9
Flow control support
Yes
Parity bit
Even, Mark, No, Odd, Space

Operational conditions

Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates
CE, RoHS

Weight & dimensions

Width
65 mm
Depth
67 mm
Height
18 mm
Weight
51 g

Packaging data

Mounting brackets included
Yes
Quick installation guide
Yes
Package width
207 mm
Package depth
144 mm
Package height
38 mm
Package weight
200 g

Logistics data

Harmonized System (HS) code
84733020
Products per master (outer) case
50 pc(s)
Master (outer) case width
530 mm
Master (outer) case length
440 mm
Master (outer) case height
340 mm
