DK-2433CU030BK-BBB - Cables & Adaptors by Digitus

Pre-assembled fiber optic breakout cables enable simple, time-saving and flexible installation of high-bandwidth network links.

- Pre-assembled
- High-quality connectors fitted ex works
- Ready for immediate use, without additional splicing work
- Standard lengths available from stock
- High-quality components and construction
- Applications Applicable for indoor and outdoor use
- Connection of network cabinets without potential differences
- Individual mechanically protected fibers
- Robust cable construction

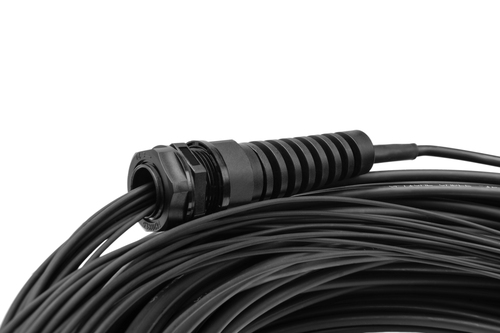

- Pull-in aid on both sides for secure installation

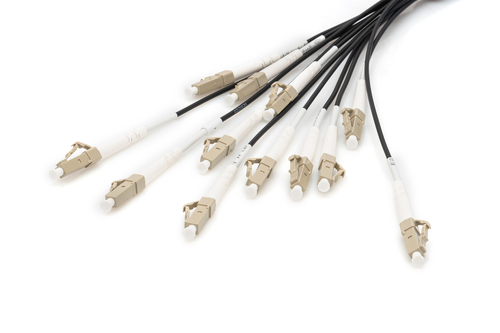

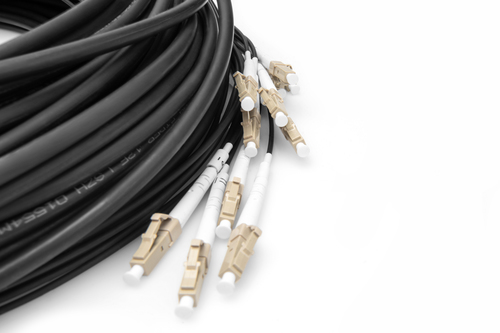

This pre-terminated breakout fiber optic cable is ideal for installations that require an extremely robust and reliable fiber optic cable design where maximum mechanical protection is required. It offers a secure plug & play solution for installations through the pre-terminated connectors. It is easy to install on partially assembled patch panels, for example. The supplied measurement protocol eliminates the need for time-consuming follow-up checks.

ON ORDER

RRP Price €237.68

Specifications

Features

Cable length
30 m
Fibre optic type
OM4

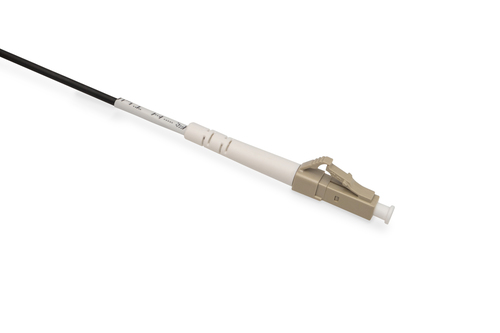

Connector 1
LC
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Connector polish type
UPC
Cable type
U-DQ(ZN) BH
Product colour
Black
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Insertion loss
0.3 dB
Return loss
30 dB
Jacket material
Low smoke zero halogen (LSZH)
Plug and Play
Yes

Operational conditions

Operating temperature (T-T)
-20 - 70 °C
Storage temperature (T-T)
-20 - 70 °C

Packaging data

Package width
360 mm
Package depth
360 mm
Package volume
23328 cm³
Package weight
2.75 kg

Packaging content

Quantity per pack
1 pc(s)

Other features

Number of optical fibres
12

Logistics data

UK Trade Tariff code
85447000
Country of origin
China
