EXSFP1GESXST - Cables & Adaptors by StarTech.com

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

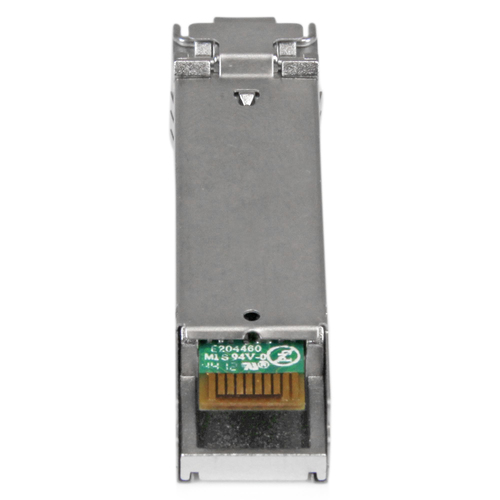

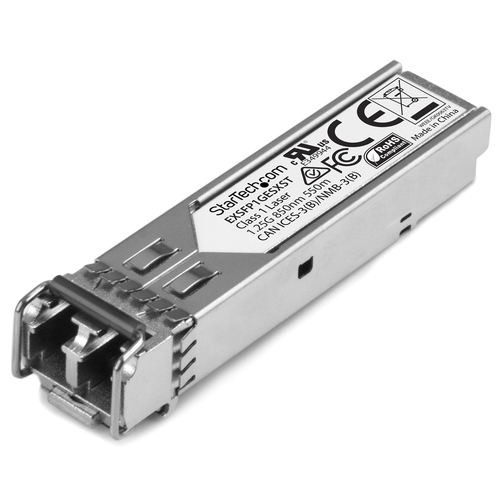

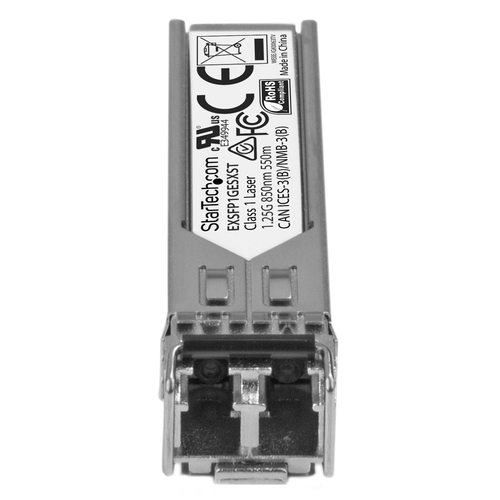

The EXSFP1GESXST is a Juniper EX-SFP-1GE-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper® brand switches and routers. It delivers dependable 1GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

1 IN STOCK

RRP Price €51.84

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
SX
Maximum transfer distance
550 m
Wavelength
850 nm
Networking standards
IEEE 802.3z
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Silver
Housing material
Aluminium
Hot-swap
Yes
Mean time between failures (MTBF)
3381761 h

Power

Power consumption (typical)
1 W

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UR

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
13.7 mm
Depth
56.6 mm
Height
12.5 mm
Weight
14 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
118 mm
Package depth
91 mm
Package height
33 mm
Package weight
42 g

Logistics data

Master (outer) case width
252 mm
Master (outer) case length
305 mm
Harmonized System (HS) code
85369010
Master (outer) case height
201 mm
Products per master (outer) case
36 pc(s)
Country of origin
China
