N383S-03M - Cables & Adaptors by Eaton

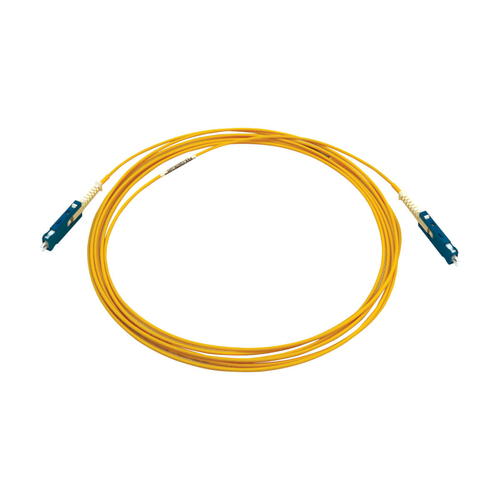

Name: Tripp Lite N383S-03M 400G Singlemode 9/125 OS2 Fiber Optic Cable (Duplex SN-UPC M/M), LSZH, Yellow, 3 m (9.8 ft.)
Brand: Eaton
SKU: N383S-03M
Price: 173.13 EUR
Availability: OutOfStock

400 GbE Cable Supports High Bandwidths for High-Density Data Networking
The N383S-03M is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals. Its high bandwidth is ideal for hyperscale, edge, enterprise and colocation data center interconnect (DCI) applications where density and speed are both very important.

Compact SN Connectors Designed for the Latest OSFP/QSFP-DD Transceivers

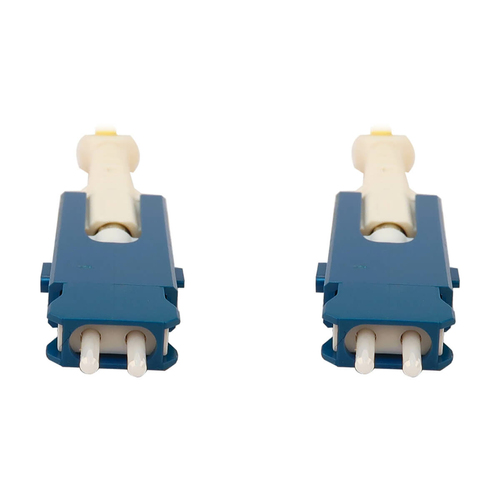

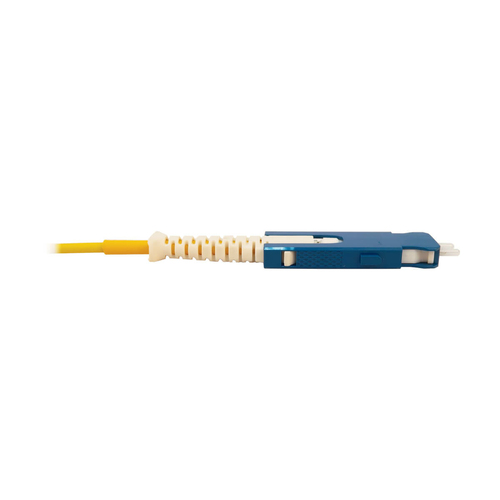

This 400 Gb cable features duplex SN connectors on both ends. SN connectors are four times smaller than standard LC connectors and provide individual and independent duplex fiber support for OSFP/QSFP-DD transceivers. Push/pull boots encourage dense vertical stacking within a crowded patch panel or switch and make the cable easy to install or remove with just one hand. The switchable SN/UPC ends let you make quick polarity changes in the field without tools or the need to re-terminate the connectors.

Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

ON ORDER

RRP Price €173.13

Specifications

Features

Cable length

2.99 m

Fibre optic type

OS2

Connector 1

Connector 2

Connector 1 gender

Male

Connector 2 gender

Male

Connector polish type

UPC

Cable type

OFNR

Product colour

Blue, White, Yellow

Full duplex

Yes

Core diameter

9 µm

Cladding diameter

125 µm

Fiber mode structure

Single-mode

Wavelengths supported

1310,1550 nm

Ethernet interface type

400 Gigabit Ethernet

Insertion loss

0.3 dB

Jacket material

Low smoke zero halogen (LSZH)

Sustainability

Sustainability compliance

Yes

Certificates

Compliance certificates

RoHS, CE, REACH

Certification

UL 1651

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-10 - 60 °C

Weight & dimensions

Cable diameter

1.6 mm

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

10 g

Logistics data

Country of origin

China

Master (outer) case width

185.4 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

149.9 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

220 g

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.01 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com Cisco SFP-10G-AOC5M Compatible 5m/16.4ft 10G SFP+ to SFP+ AOC Cable - 10GbE SFP+ Active Optical Fiber - 10Gbps SFP Plus/Mini GBIC/Transceiver Module Cable - Firepower ASR1000 Cables & Adaptors

Fiber SFP+ Cable | 10 Gbps | AOC | Lifetime WarrantyThe SFP10GAOC5M is a Cisco SFP-10G-AOC5M compatible fiber optical SFP+ cable that is designed, programmed and tested to work with Cisco® brand 10 Gb compatible servers or routers and complies with MSA industry standards.This active optical SFP+ cable (AOC) supports 10 GbE applications connected through SFP+ (Mini-GBIC) ports and is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. The AOC cable is lighter and more flexible than SFP+ direct-attach cables which makes it ideal for installation in tight spaces and over longer distances.Designed for high-speed interconnects, this low-power, low-latency optical cable is ideal for applications such as point-to-point in-rack and across-rack network switch or server connections.StarTech.com SFP CablesAll StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€117.94

StarTech.com RJ45 Port Locks - 10 Pack with Security Key, Locking RJ45 Port Blocker/Dust Cover, Reusable Ethernet/LAN Port Protector, Snap In RJ45 Dust Blocker for Servers/Switches/Wall Plates Cables & Adaptors

Protect unused Ethernet ports and deter unauthorized accessInstall these 10 RJ45 Port Locks into standard RJ45 (modular 8P8C) jacks/Ethernet LAN ports to restrict access and to protect against physical damage, dust, and contaminants.Protect Network Ports and EquipmentProtect standard RJ-45 ports that are not currently in use. An installed RJ45 port blocker serves as an effective visual and physical deterrent to unauthorized users. In addition, the locking RJ45 port protectors safeguards against particulate matter, preventing the accumulation of dust on the contacts within jacks. This ensures the reliable operation of critical infrastructure equipment such as servers, switches, and routers, preventing errors and potential downtime attributed to foreign particles in exposed slots.Quick Installation and RemovalThe snap-in RJ45 Port Locks enable quick and simple installation and removal without disrupting adjacent ports or cables. Once the lock is installed, it can only be removed with the included security key. The locks are reusable and can be re-deployed where needed.The StarTech.com Advantage

€10.54

StarTech.com 1m Black Straight Through DB9 RS232 Serial Cable - M/F Cables & Adaptors

Extend the connection between your DB9 serial devices by up to 1mThe MXT1001MBK Black Serial Extension Cable (1m) features one DB9 male connector and one DB9 female connector, providing a high quality extension for your RS232 serial devices, which enables you to position your peripheral devices as needed.Note: This is a Straight-through cable, not a null-modem.Expertly designed and constructed of top quality materials to ensure durability, this DB9 extension cable is backed by our Lifetime Warranty.The StarTech.com Advantage- Allows you to extend the reach of your serial devices by up to 1 meter, reducing cable length restrictions and providing flexibility for positioning your serial devices as needed- High quality cable shielding helps prevent EMI interference- Backed by StarTech.com lifetime warranty for dependable performance

€3.66

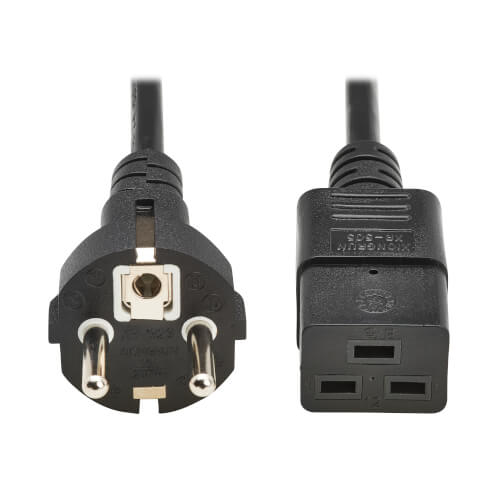

Eaton P050-2P5M-EU power cable Black 2.5 m CEE7/7 IEC C19 Cables & Adaptors

Connects a server or PC with a C20 plug to a PDU or UPS with Schuko outlets.EU Power Cord Connects Data Center Equipment to Reliable AC PowerThis VDE-compliant power cable connects a computer, server, hard drive or other device with a C20 plug to a PDU, UPS system or surge protector with Schuko outlets. It can also extend an existing power connection up to 2.5 meters (8.2 feet). The P050-2P5M-EU features a CEE 7/7 Schuko end for connecting to an AC power source and an IEC-320-C19 end for connecting to a network device in a data center or other IT application.H05VV-F Jacket Is Fully VDE-Compatible for European ApplicationsThe 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.

€12.77

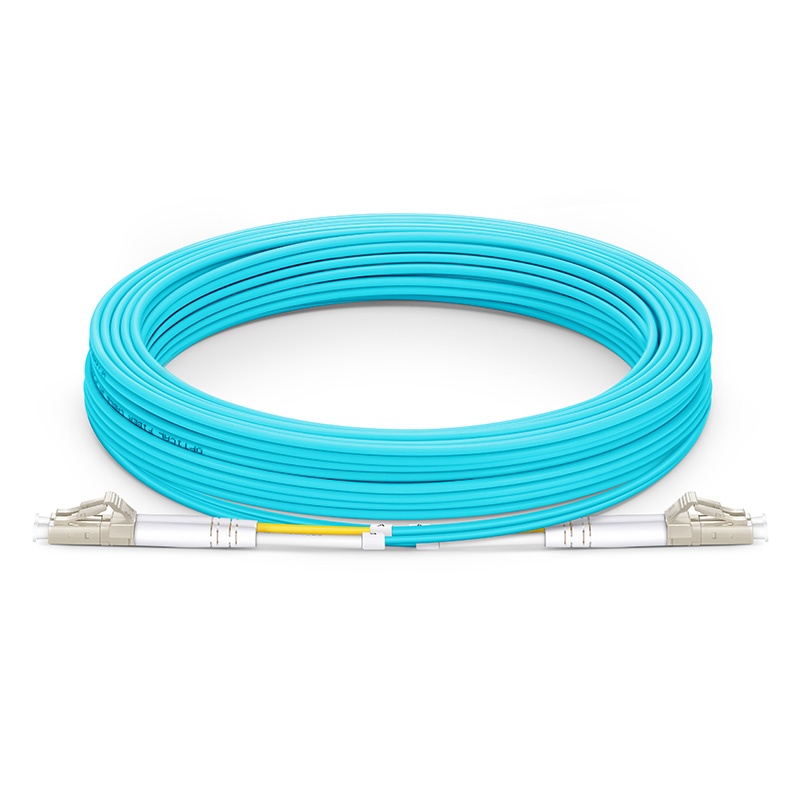

10M (33FT) LC UPC TO LC UPC DUPLEX OM3 MULTIMODE PVC (OFNR) 2.0MM FIBER OPTIC PATCH CABLE Cables & Adaptors

10M (33FT) LC UPC TO LC UPC DUPLEX OM3 MULTIMODE PVC (OFNR) 2.0MM FIBER OPTIC PATCH CABLE

€9.00

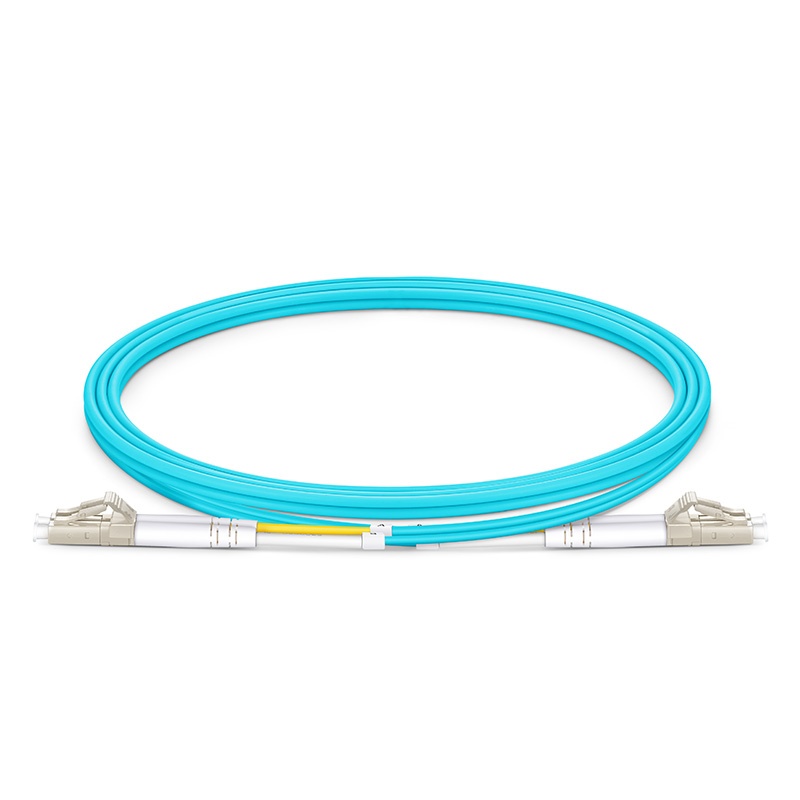

1M (3FT) LC UPC TO LC UPC DUPLEX OM4 MULTIMODE PVC (OFNR) 2.0MM FIBER OPTIC PATCH CABLE Cables & Adaptors

1M (3FT) LC UPC TO LC UPC DUPLEX OM4 MULTIMODE PVC (OFNR) 2.0MM FIBER OPTIC PATCH CABLE

€4.32

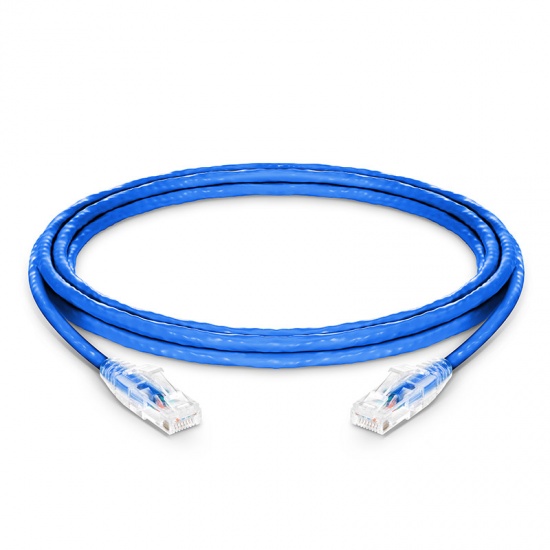

10FT (3M) CAT6 SNAGLESS UNSHIELDED (UTP) PVC CM ETHERNET NETWORK PATCH CABLE, BLUE Cables & Adaptors

10FT (3M) CAT6 SNAGLESS UNSHIELDED (UTP) PVC CM ETHERNET NETWORK PATCH CABLE, BLUE

€4.32

Cisco CAB-SPWR-150CM InfiniBand/fibre optic cable 1.5 m Black Cables & Adaptors

The Cisco StackPower cables are thick but flexible, and they carry power as well as a data signal to provide a communications channel among the switches in the power stack. StackPower and XPS cables are keyed and have colored bands on the ends to help you understand what cable plugs into what switch or XPS.A StackPower cable has colors bands on the cable ends, green on one end and yellow on the other end. This cable can be used between Catalyst 3750-X switches and an XPS. Note that the connector with the blue band can only connect into a Catalyst 3750-X switch while the connector with the yellow band can connect to a Catalyst 3750-X or an XPS.An XPS cable has a color band on the cable ends as well, red on one end and yellow on the other end. This cable can only be used to connect Catalyst 3750-X or 3560-X switch to an XPS. Note that the connector with the red band can only connect to an XPS while the connector with the green and blue band can connect to Catalyst 3750-X or 3560-X switch.The Cisco Catalyst 3750-X Series Switches come with four power supply options and any of them can be used on any switch in a stack and in any combination.

€141.58

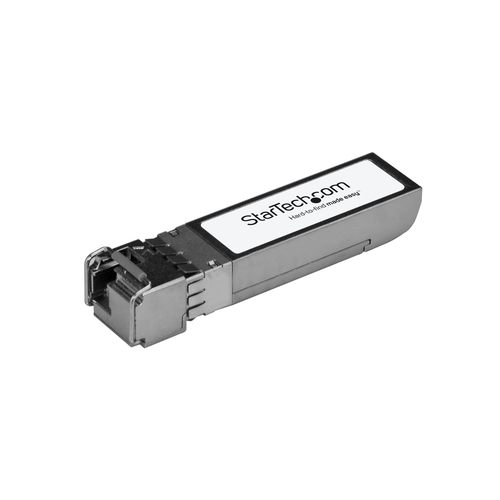

StarTech.com Brocade 10G-SFPP-BXU Compatible SFP+ Module - 10GBASE-BX-U - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors
