StarTech.com 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable

StarTech.com 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable

Name: StarTech.com 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
Brand: StarTech.com
SKU: PEX2S1P553B
Price: 48.10 EUR
Availability: InStock

Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot

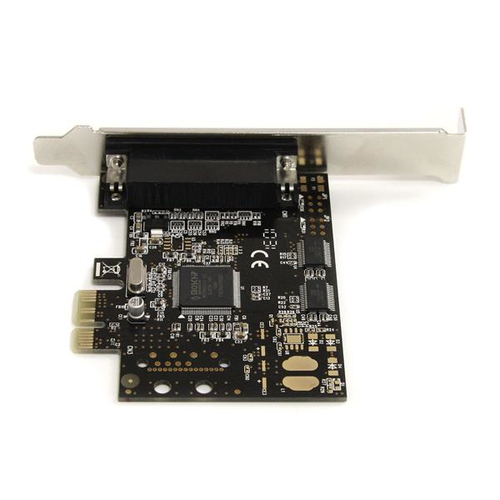

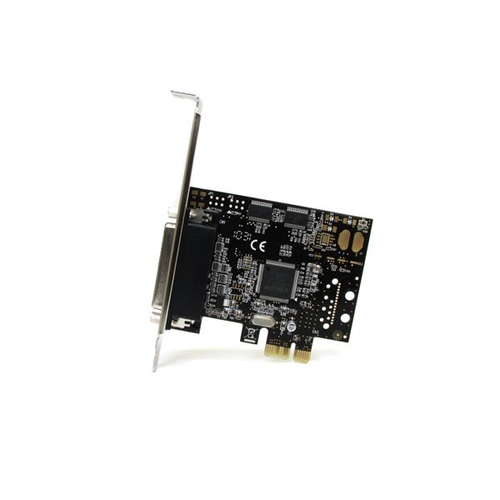

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

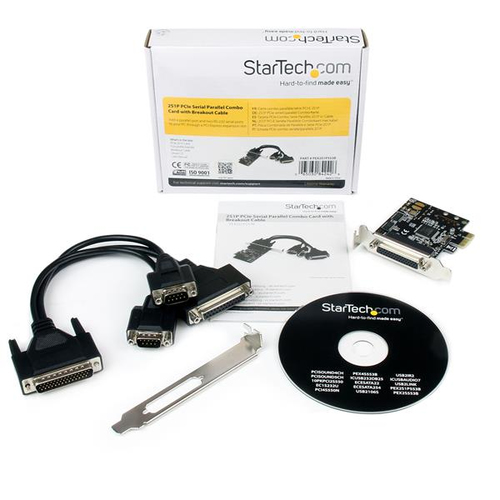

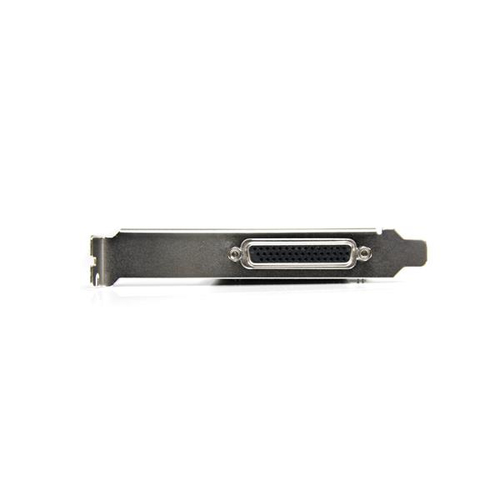

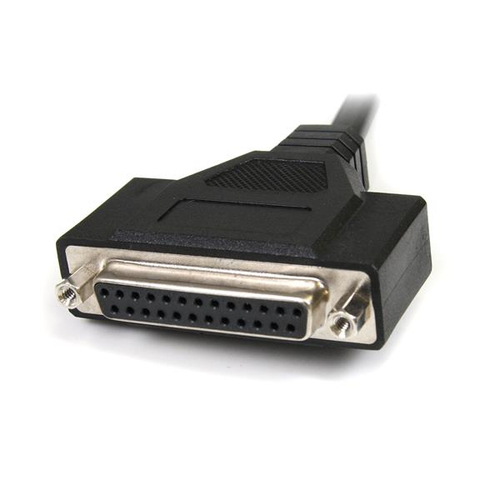

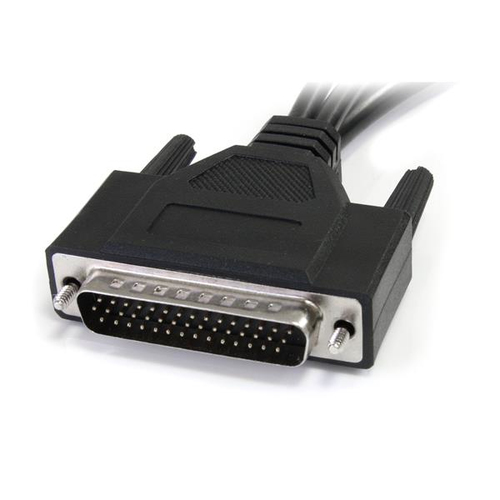

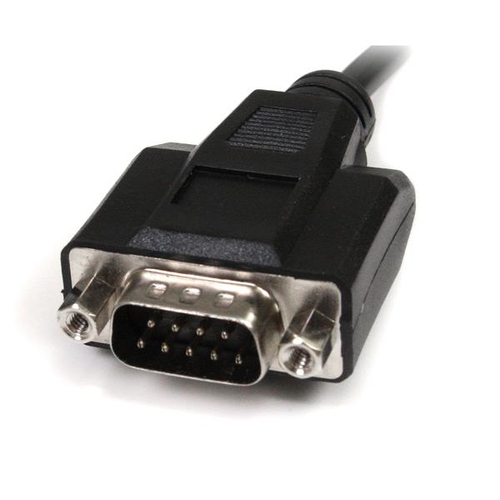

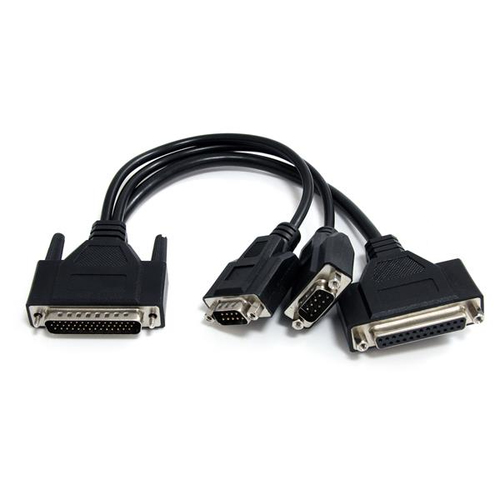

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.

This product is a replacement for our PEX2S1P552B card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- Break-out cable design with low and standard profile brackets offers a versatile, single slot solution for adding 3 additional ports (2 serial, 1 parallel) to almost any system, including space-sensitive embedded applications
- Native single-chip design reduces CPU load for improved performance and reliability
- Broad Operating System support, including 64-bit Windows systems, for easy integration into mixed environments

7 IN STOCK

RRP Price €48.10

Specifications

Ports & interfaces

Host interface

PCIe

Output interface

Parallel, Serial

Expansion card form factor

Low-profile

Serial ports quantity

Serial interface type

RS-232

Parallel ports quantity

Design

Internal

Yes

Product colour

Black, Silver

Certification

CE, FCC, REACH

Features

Chipset

ASIX - MCS9901CV-CC

Baud rate

230.4 Kbit/s

FIFO (First In, First Out)

256 B

Data bits

5, 6, 7, 8

Logical block addressing (LBA) support

8 bit

Supports EPP and ECP

Yes

Parity bit

Even, Mark, No, Odd, Space

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 85%

System requirements

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Other operating systems supported

Windows Embedded POSReady 2009, Windows XP Embedded

Technical details

Compliance certificates

RoHS

Weight & dimensions

Width

23 mm

Depth

95 mm

Height

79 mm

Weight

225 g

Packaging data

Cables included

Serial

Mounting brackets included

Yes

Drivers included

Yes

Manual

Yes

Package width

173 mm

Package depth

143 mm

Package height

32 mm

Package weight

317 g

Logistics data

Harmonized System (HS) code

84733020

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.225 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Shuttle PCP11 - COM port (RS232) adapter cable for PCs Cables & Adaptors

P20U, P22U, P51U, P52U: These Shuttle XPC all-in-one products come with two COM ports as standard. The PCP11 adds up to two more COM ports which makes it a total of four serial COM ports (RS232) with Sub-D connectors.DS10U, DS20U: The Shuttle XPC slim DS10U Series comes with one COM Port and one VGA port as standard. If two COM ports are required, the existing VGA port may be removed and replaced by PCP11 instead.XH410G, XH510G, XH510G2: with PCP11 an additional COM port can be installed on the backpanel.Scope of delivery: - 1x COM port adapter- 2x affixing screw (UNC 4-40 thread)- Installation guidePorts:External: Sub-D, 9-pin, maleInternal: 10-pin (2×5), female, 2 mm pitchCable:9-pin ribbon cableLength: Approx. 21 cmCompatibility: This accessory is compatible with:1) Shuttle XPC all-in-one Barebone P20U / P22U / P51U / P52U series2) Shuttle XPC slim Barebone DS10U / DS20U series3) Shuttle XPC slim Barebone XH410G / XH510G / XH510G2

€7.56

Digitus Cable Management Panel with Brush Entries for 483 mm (19") Cabinets, 1U Cables & Adaptors

- Easy installation- Optimized cable management possibilities due to cable rings and additional openings with brushesThe Cable Management Panel is getting fixed on the 483 mm (19”) profile rails. Four cable guiding rings and three cable entries with brush allow an easy, horizontal array of patch cords. It guarantees an optimized cable management in your 483 mm (19”) network- or server rack.

€12.82

Digitus CAT 6A connector for field assembly, unshielded, AWG 27/7 to 22/1, solid and stranded wire Cables & Adaptors

RJ45 connector for field assembly, CAT 6AThe DIGITUS Professional RJ45 connector for field assembly is a modern and high class RJ45 plug, characterized not only by the simple application, but standing the field assembler every time reliably and quickly at his side. The rapid assembly in only 120 seconds without special tools, as well as the high flexibility, makes it to the perfect choice at any locations. It is suitable for all networks of voice up to 10 Gigabit Ethernet. Satisfied customers, because of fast and cost-saving installation, repairs and maintenance, are the logical consequence of this innovative RJ45 plug. Why complicate things when it can be so easy? See for yourself!

€3.91

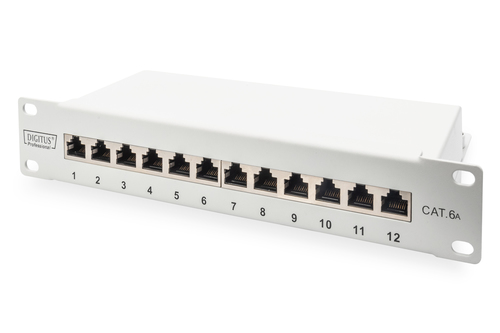

Digitus CAT 6A Patch Panel, shielded, 12-Port, 1HE, 10", grey Cables & Adaptors

Future-orientated standards and high-end quality for your network.- Sturdy patch panel with metal housing- Complete shielding of housing and shield contact- Cable installation by IDC-strips- Central grounding connector- Dielectric strength up to 1500VDCThe CAT 6A patch panel is available in this 12 port version. It offers sturdy design by its 1.5mm galvanic cold rolled steel. Perfect for 10" cabinet mounting. The fully shielded RJ45 sockets provide an optimal stability for your cables with best performances. The patch panel applies to 802.3at/af PoE standard. It is shielded electromagnetically and offers lost and interruption free forwarding of your data in your network. The 360 degree shielding at the contact points makes sure every single point of consilidation is shielded perfectly.

€26.39

Tripp Lite N390B-05M-12-AP 40/100G Singlemode 9/125 OS2 Fiber Optic Cable (12F MTP/MPO-APC F/F), LSZH, Yellow, 5 m (16.4 ft.) Cables & Adaptors

100 GbE Cable Supports Higher Bandwidths Needed for Data NetworkingAs the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths in enterprise applications in wiring closets, telecom rooms and data centers. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.100% Tested for Low Insertion Loss and Back ReflectionThe 12-fiber MTP/MPO APC connectors with green housings help minimize back reflection with low insertion loss.Yellow Jacket Helps Avoid Misidentification That Can Cause Costly DowntimeThe OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

€130.76

Digitus SC / SC Coupler, Multimode Cables & Adaptors

The best solution for Splice BoxesThe high quality DIGITUS® fiber optic couplers with ceramic ferrule are the perfect supplement for the assembling of splice boxes. Due to constant quality controls and the accurate processing, the couplers guarantee an optimal performance and link quality. Each coupler is equipped with a dust protection cup, to protect the ferrules against dust. Moreover the couplers are delivered with the suitable mounting material, so that they can be installed and fixed to the front panels immediatly. The perfect perfomance is achieved by using the DIGITUS® Pigtails, which are also high quality manufactured and whose connectors interact with the couplers in the best of possible ways.

€0.82

Digitus VGA Monitor connection cable, HD15/M - HD15/M Cables & Adaptors

Offers high-quality protection against external interferences and prevents ghost images and other image faults.For connection of a PC, for example, with a monitor or beamer /projector.

€8.94

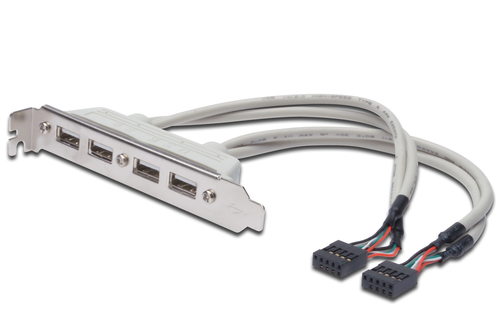

Digitus USB Slot Bracket Cable Cables & Adaptors

Allows a reliable and fast connection of external USB devices with the PC, also about longer distances.To establish a connection between the USB motherboard interface and the external USB ports on the slot bracket. Datatransferrate up to 480 Mbps (High-Speed).

€4.36

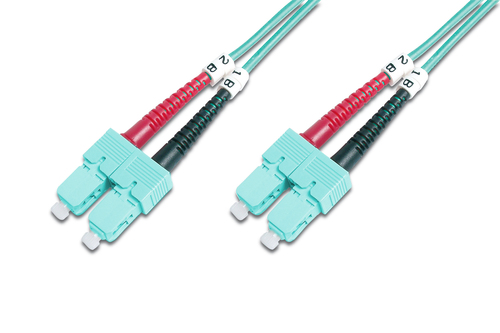

Digitus Fiber Optic Multimode Patch Cord, OM 3, SC / SC Cables & Adaptors
