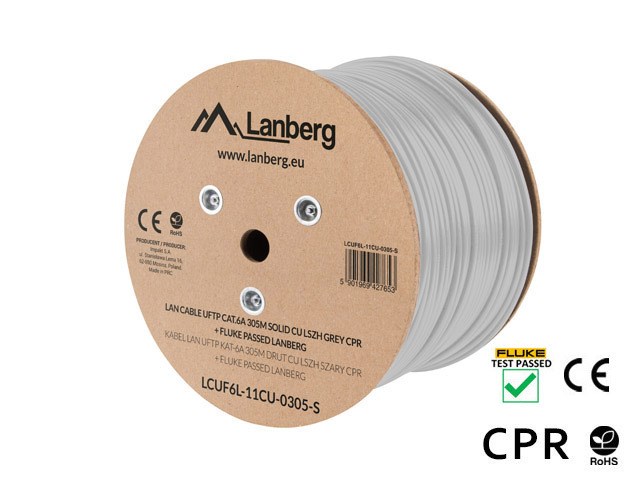

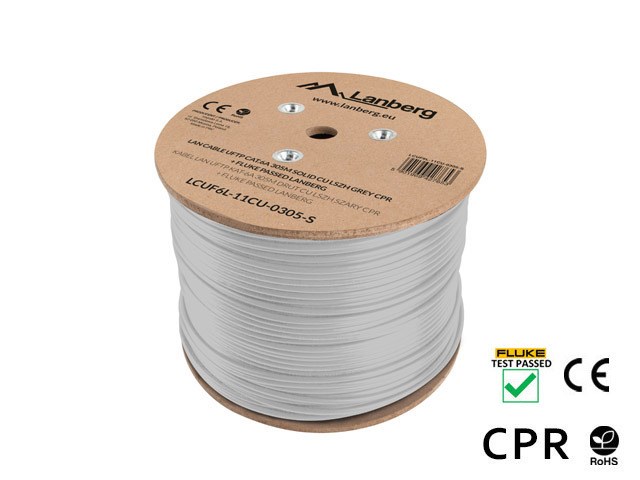

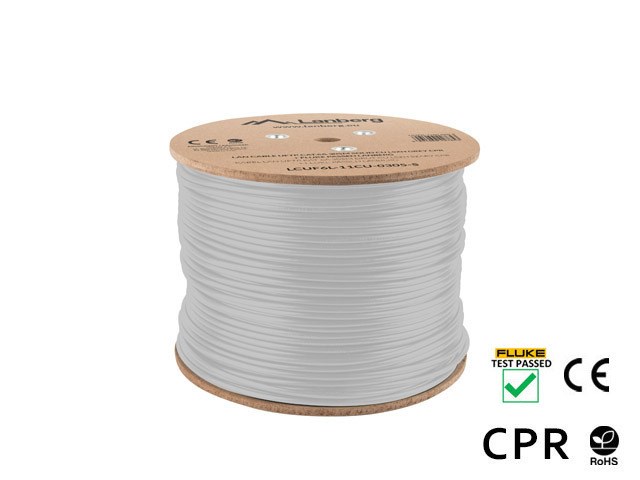

Lanberg LCUF6L-11CU-0305-S networking cable Grey 305 m Cat6a U/FTP (STP)

Lanberg LCUF6L-11CU-0305-S networking cable Grey 305 m Cat6a U/FTP (STP)

Name: Lanberg LCUF6L-11CU-0305-S networking cable Grey 305 m Cat6a U/FTP (STP)
Brand: Lanberg
SKU: LCUF6L-11CU-0305-S
Price: 201.82 EUR
Availability: InStock

Specification:

- LAN cable category 6A U/FTP (shielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 23 (4*2*0.55mm).
- Conductor stranding: single wire.
- Color: PANTONE COOL GRAY 5C.
- Printed length counter at every meter of cable.
- External PVC insulation: 7.6mm.
- HDPE conductor insulation: 1.32mm.
- Operation up to 500Mhz.
- Recommended connector / guide diameter for braided cables: 1.45 mm.
- Package: Wooden Drum.
- Packaging dimensions (W x D x H): 50x50x52 cm.

Electrical characteristics (20 degrees):

- direct-current resistance: ?9.5?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15 (4~250MHz) 100?±22(250~500MHz).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.

17 IN STOCK

RRP Price €201.82

Specifications

Features

Product colour

Grey

Cable length

305 m

Cable standard

Cat6a

Cable shielding

U/FTP (STP)

Connector 1

Connector 2

Connector 1 gender

Male

Connector 2 gender

Male

Jacket material

Polyvinyl chloride (PVC)

Conductor type

Solid

Conductor material

Copper

Cable type

Cable on reel

Cabling technology

10GBase-T

Ethernet interface type

10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

AWG wire size

Data transfer rate

10000 Mbit/s

Frequency

500 MHz

Certificates

Compliance certificates

RoHS

Weight & dimensions

Outer diameter

7.6 mm

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

50 mm

Package depth

50 mm

Package height

52 mm

Description

Manufacturer

Lanberg

WH1 (1–2 Days)

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

17.97 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

StarTech.com Cat5e Ethernet Patch Cable with Snagless RJ45 Connectors - 10 m, Orange Cables & Adaptors

Cat 5e CablesOur wide selection of Cat 5e patch cables makes it easy to find the lengths and colors that you need to complete your network connections.Our Ethernet cables are:- Durable. All of our patch cables are constructed to the highest industry standards, to ensure high-quality installs.- Dependable. You can rely on our Cat 5e cables to deliver the stability and speed that you need for reliable network performance.- Backed by a lifetime warranty. All of our network cables are guaranteed to last as long as you need them.

€8.36

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-EX~MSA Uncoded SFP Module - 100BASE-EX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 40km - 1310nm - DDM Cables & Adaptors

100 Mbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime WarrantyThe SFP100BEXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-EX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.Technical Specifications:• Wavelength: 1310nm• Maximum Data Transfer Rate: 155 Mbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 40 km (24.8 mi)• Power Consumption: Less than 1 Watt• DDM: YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€73.77

StarTech.com MSA Compliant SFP Transceiver Module - 100BASE-BX~MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 MbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP100BBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXUST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1550nmTx/1310nmRx• Maximum Data Transfer Rate: 155 Mbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• Power Consumption: Less than 1 Watt• DDM: YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€80.32

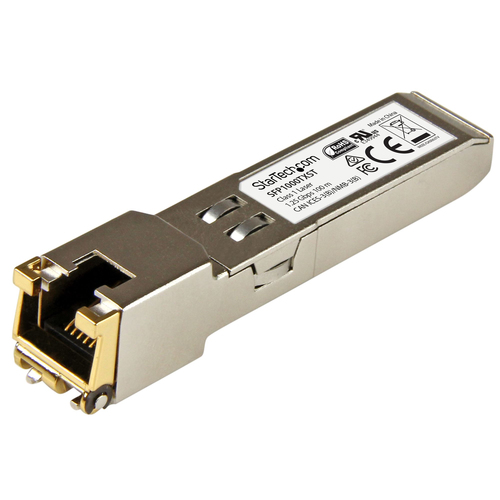

StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-TX~MSA Uncoded SFP Module - 1000BASE-TX - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m Cables & Adaptors

1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime WarrantyThe SFP1000TXST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 1000BASE-TX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 100 m (328 ft) and delivers dependable 1 GbE connectivity over copper cabling.Technical Specifications:• Maximum Data Transfer Rate: 1000 Mbps• Type: Copper• Connection Type: RJ45 Connector• Maximum Transfer Distance: 100 m (328 ft)• Power Consumption: Less than 1.3 Watt• DDM: NoThis SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€47.24

StarTech.com 1 ft Slim 3.5mm Right Angle Stereo Audio Cable - M/M Cables & Adaptors

Easily connect an iPod or other MP3 player to a car stereoThis 1-foot Slim 3.5mm Right Angle to Right Angle Stereo Audio Cable is the perfect solution for portable audio devices (iPod, iPhone,iPad, MP3 Players), featuring a slim connector molding that fits easily into a 3.5mm headphone jack, even if the device is in a protective case. For those difficult to reach areas, our Right Angle 3.5mm stereo audio to 3.5mm right angle cable allows you to connect where a normal (straight) stereo audio connector cannot. Like all StarTech.com cables, this 1-foot 3.5mm Slim Stereo Audio Cable is backed by our Lifetime Warranty, providing guaranteed quality and reliability.The StarTech.com Advantage- Unique slim connector design fits most iPod and iPhone 3.5mm stereo jacks without having to remove a protective casing- Right angle connectors allows you to easily connect to tight spaces and hard to reach areas where a normal straight connector cannot- Gold-plated, molded connectors with strain relief ensure a solid high quality connection between the connected devices

€1.46

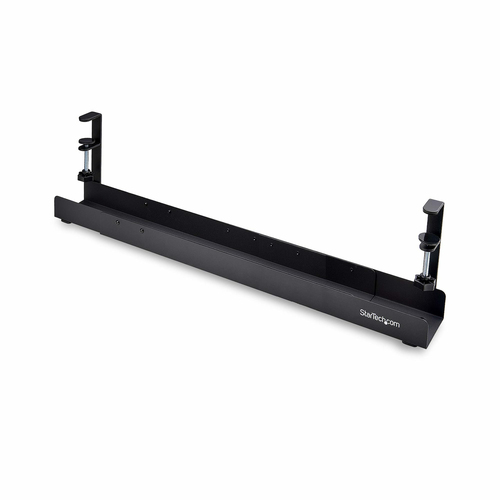

StarTech.com Under Desk Cable Management Tray, Length Adjustable Cable Organizer, Clamp-On Installation, No Drilling Required, Power Bar Holder, Black Cables & Adaptors

Streamline cable management with this under-desk cable organizer trayThis under-desk cable management tray helps keep workspaces organized and free of clutter, reducing the risk of tripping hazards and tangled cords.Extra-Large TrayThe extra-large tray is 4.1inches (105mm) wide and has additional headspace between the desk and the tray to accomodate larger power adapters or power bars/strips.Length Adjustable DesignThe cable manager tray is length adjustable, offering three different lengths (2.6ft, 3.3ft, and 3.9ft / 0.8m, 1m, and 1.2m) to match the desk size and the distance cables need to be routed. All necessary hardware for length adjustment and product installation is included.Versatile SetupThis cable organizer works with desks of any material, including wood, glass, and metal, from 0.2inches (5mm) to 2inches (50mm) thick. Cable management slots improve accessibility and enhance workspace aesthetics by keeping cords neatly routed, contributing to better airflow.No Drilling RequiredThe organizer tray features a clamp-on installation, allowing for a tool-free setup with no drilling required. This makes it ideal for quick repositioning without damaging the desk. Foam padding protects the desk surface, while rubber on the clamp prevents slipping when attached.Durable ConstructionBuilt from powder-coated steel, the tray is durable and resistant to scuffs and damage. It remains stable even when fully extended over long periods of time. The ISTA-6 certified packaging ensures the product can withstand various transportation conditions and handling processes.The StarTech.com Advantage

€49.67

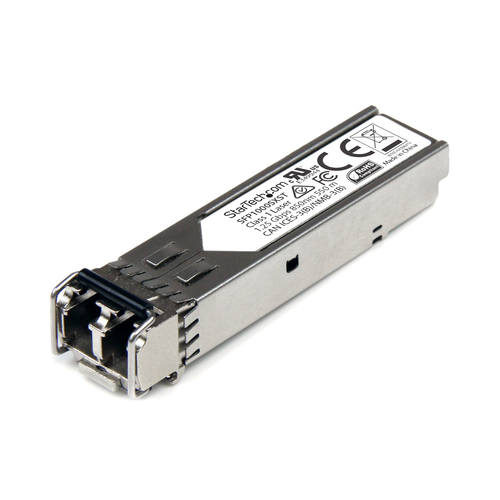

StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX~MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cables & Adaptors

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime WarrantyThe SFP1000SXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 1 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 850nm• Maximum Data Transfer Rate: 1.25 Gbps• Type: Multi Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 550 m (1804 ft)• Power Consumption: Less than 1 Watt• DDM: YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€32.52

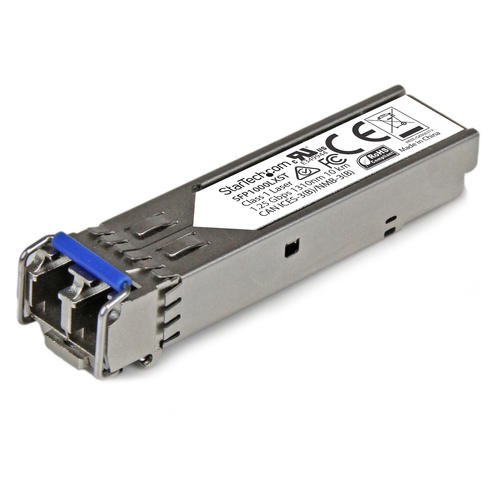

StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-LX~MSA Uncoded SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber (SMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cables & Adaptors

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP1000LXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1310nm• Maximum Data Transfer Rate: 1.25 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• Power Consumption: Less than 1 Watt• DDM: YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

€52.46

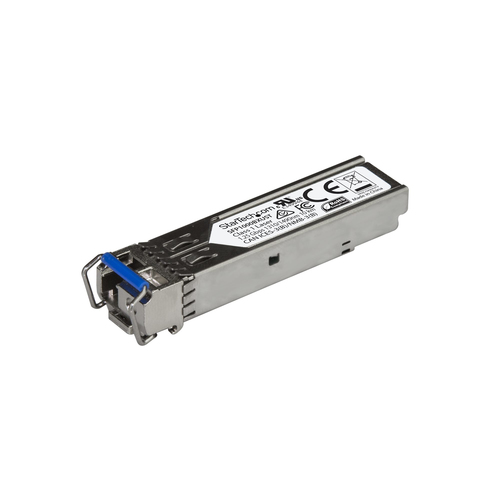

StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-BX~MSA Uncoded SFP Transceiver Module - 1000BASE-BX - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) Cables & Adaptors
