SRW12US - Computer Systems by Eaton

Name: Tripp Lite SRW12US SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back
Brand: Eaton
SKU: SRW12US
Price: 524.86 EUR
Availability: OutOfStock

The SRW12US SmartRack® 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

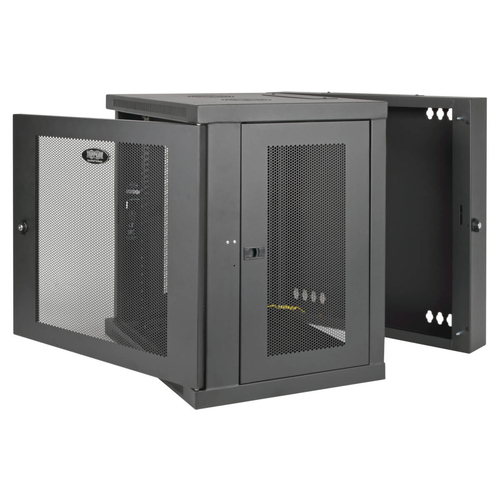

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

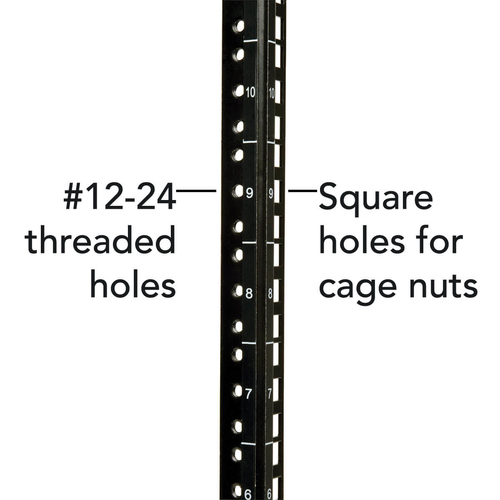

The SRW12US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

ON ORDER

RRP Price €524.86

Specifications

Features

Rack capacity

12U

Type

Wall mounted rack

Maximum weight capacity

90.7 kg

Product colour

Black

Certification

EIA-310-E, IEC 60297-3-100, DIN 41494, IP20, RoHS

Weight & dimensions

Width

596.9 mm

Depth

549.3 mm

Height

625.5 mm

Weight

27.2 kg

Packaging data

Package width

660.4 mm

Package depth

706.1 mm

Package height

617.2 mm

Package weight

29 kg

Logistics data

Country of origin

China

Harmonized System (HS) code

8517.79.0000

Master (outer) case width

660.4 mm

Master (outer) case length

706.1 mm

Master (outer) case height

617.2 mm

Master (outer) case gross weight

29 kg

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

27.22 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
